Introduction

ADTF enables you to develop concrete (automotive) functionality and complex applications that transform, record and visualize data.
To stay flexible, configurable and re-useable you will use the ADTF Configuration Editor to create a filter graph, that is the major key point of the framework and streaming data.

The filter graph will give you the possibility to design an application with small processing parts (filters) those fulfill a particular task.
It is recommended to implement and design filters to reuse them in more than one filter graph configuration.

Time - The term time is used in case of a continously raising value with clear defines time base. Time is not a value!
Timestamp - The term timestamp is used in case of describing a moment of Time. This is a static value with a static offset to its time base.
tTimeStamp - The type tTimeStamp is usually a timestamp in microseconds (if not, the declaration of a use needs to mark this explicitly).
Data - Usually data are any kind of user defined signal, structs or memory.
Streaming Data - Streaming Data is a continous data flow which have a time relation on each data by a timestamp.

Named Graph Object

Each component that can be added to the filter graph uses the basic interface adtf::streaming::INamedGraphObject.

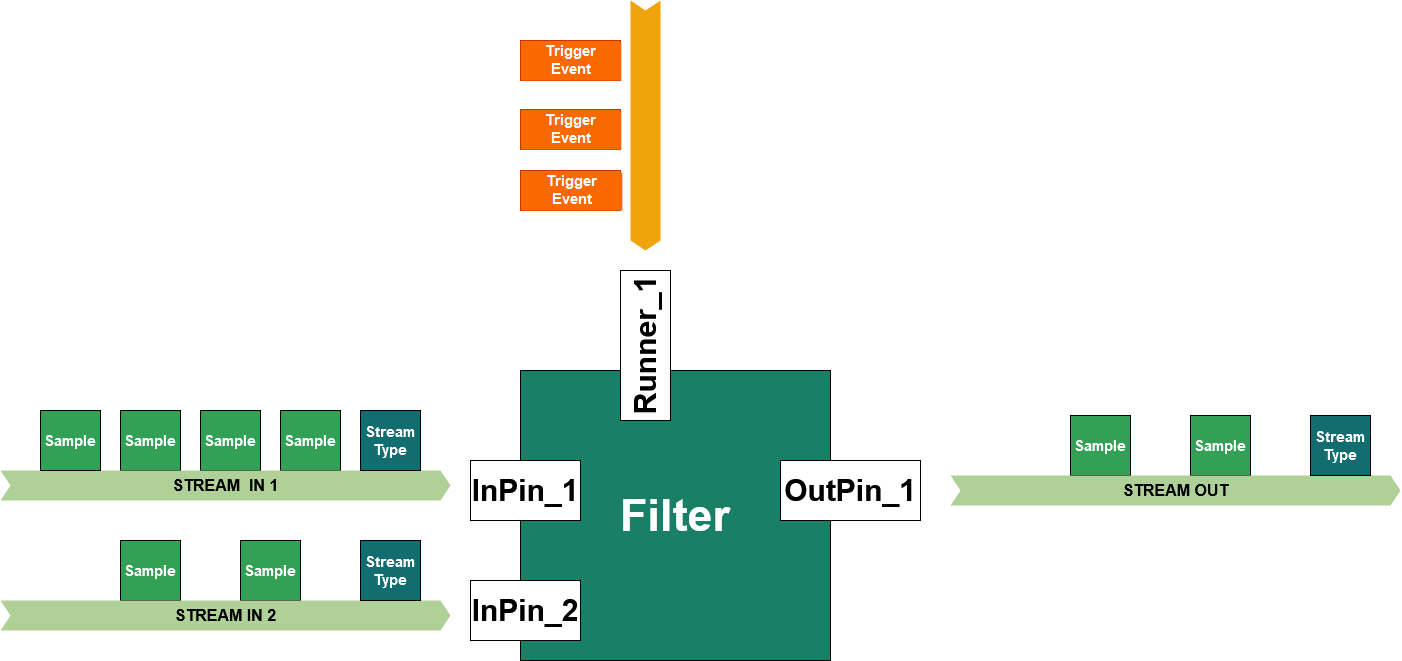

Filter

Filters are small processing units. Some predefined utility filters are part of the ADTF delivery, see Components.

The filter is able to:

receive data via input pins and there corresponding sample reader
send data via output pins and there corresponding sample writer
processing data in the context of runners (also called trigger contextes, runnables, runnable functions, callables)

Filters can be used to:

decode streaming data from streaming sources like i.e. CAN raw data or FlexRay cycles
pre-process incoming data and prepare it for a algorithm implementation
re-calculate and merge incoming data by a fancy algorithm implementation
implement a loop controller
receive incoming data and show, log or display it in a human readable way
... and many things more.

You can setup a filter with properties to adjust its concrete behaviour or its initial state.
A simple filter state machine is to create, initialize and start a filter step-by-step.

The filter itself is designed to separate the data transmissions and runtime behaviour from each other.
This gives users of a specific filter the flexibility of trigger configuration while using the filter in a specific filter graph and connecting the so called runners.

Users can decide while configuring and using if the filter runs by

a data trigger: the functionality runs on an incoming data event.
a time trigger: the functionality runs on an incoming time event.

Note: Within the adtf::streaming a adtf::streaming::cFilterBase class implementation does exist.
We recommend to use the convenience API in the adtf::filter.

Use the ADTF Filter SDK as follows:

#include <adtffiltersdk/adtf_filtersdk.h>

//...

class cMyFilter : public adtf::filter::cFilter
{
public:
    //this will define an ID of the filter can be used to create the filter
    ADTF_CLASS_ID_NAME(cMyFilter, "my_filter.filter.example.cid", "My Filter");

    //the CTOR of the Filter
    cMyFilter()
    {
    }
};

Usually the filter will be packed into a plugin. This plugin mechanism of ADTF allows you to enrich the frameworks functionality and enables it to load i.e. filters into the runtime of ADTF.
To create a plugin for the above filter cMyFilter you must use following code:

//...
//this will create a plugin entry point for you if this is a shared object/dynamic library created by the adtf_add_filter() CMake macro
ADTF_PLUGIN("MyFilter Example Plugin", cMyFilter);


Streaming Service

Streaming services - sources and sinks - are components to define system entry points and system exit points.
Usually these implementations are the first or last item of a data pipe or trigger pipe.

Streaming Source

A streaming source is a system entry point for samples and data triggers coming i.e. from a hardware. Usually you will implement any device link as streaming source.

Streaming sources can be used to

read streaming data like i.e. video streams from cameras, CAN messages from CAN-Bus devices, etc
hard disk or stream reader to provide filebased or remaining bus simulation data
network or interprocess connection to receive samples from a distributed system like ROS2 (Robotic operating system) or DDS (Data Distribution Service).

Following requirements exists for Streaming Sources:

Only output pins are allowed!
Sources are allowed to create threads and timers, if it is not possible to use a runner.
You are advised to describe your runtime behaviour within your documentation.

Note: Make sure to create data triggers (streaming::trigger, ManualTrigger) after finishing data transmission!

Streaming Sink

The streaming sink is an ADTF system exit point for samples and triggers.
Usually you will implement any device link as a streaming sink.

Streaming sinks can be used to

write streaming data like raw CAN messages to a CAN-Bus device
write FlexRay cycles or Automotive Ethernet PDUs to devices
create a hard disk access for filebased data logging and high performance recording

Following requirements exist for streaming sinks:

Only input pins are allowed!
Sinks are allowed to create own threads and timers, if it is not possible to use a runner.
You are advised to describe your runtime behaviour within your documentation.

Warning: Do not block an incoming trigger within your implementation!
As long as you block incoming triggers you block the trigger pipe.

Active Runner

Active Runners are the single self-active objects of the filter graph.

They are the very beginngin of a trigger pipe.
By default ADTF will deliver following active runner you may use in you filter graph:

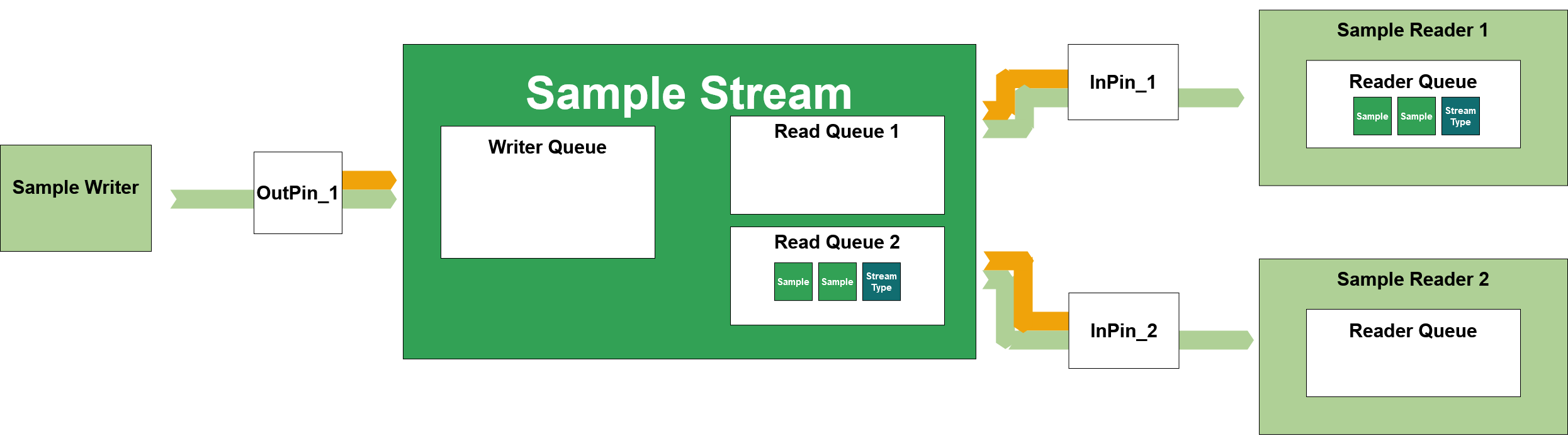

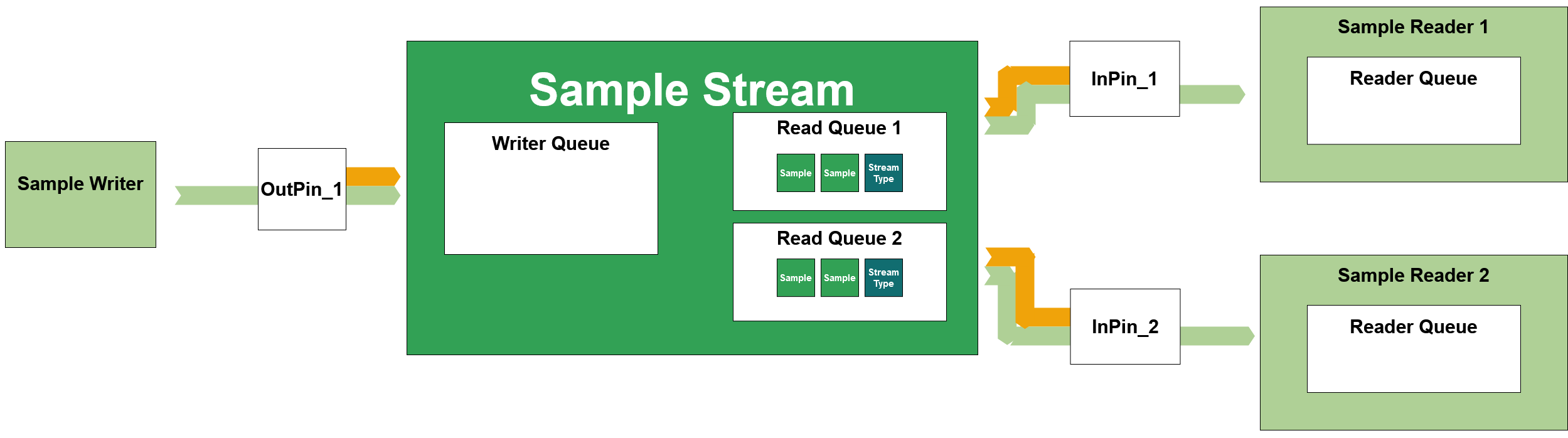

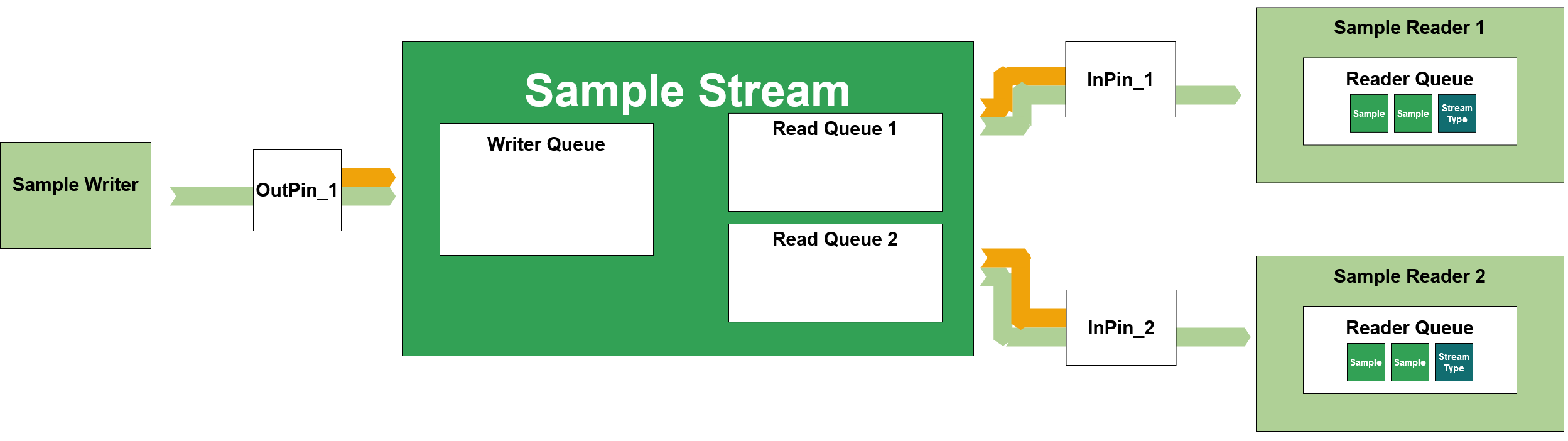

Sample Stream

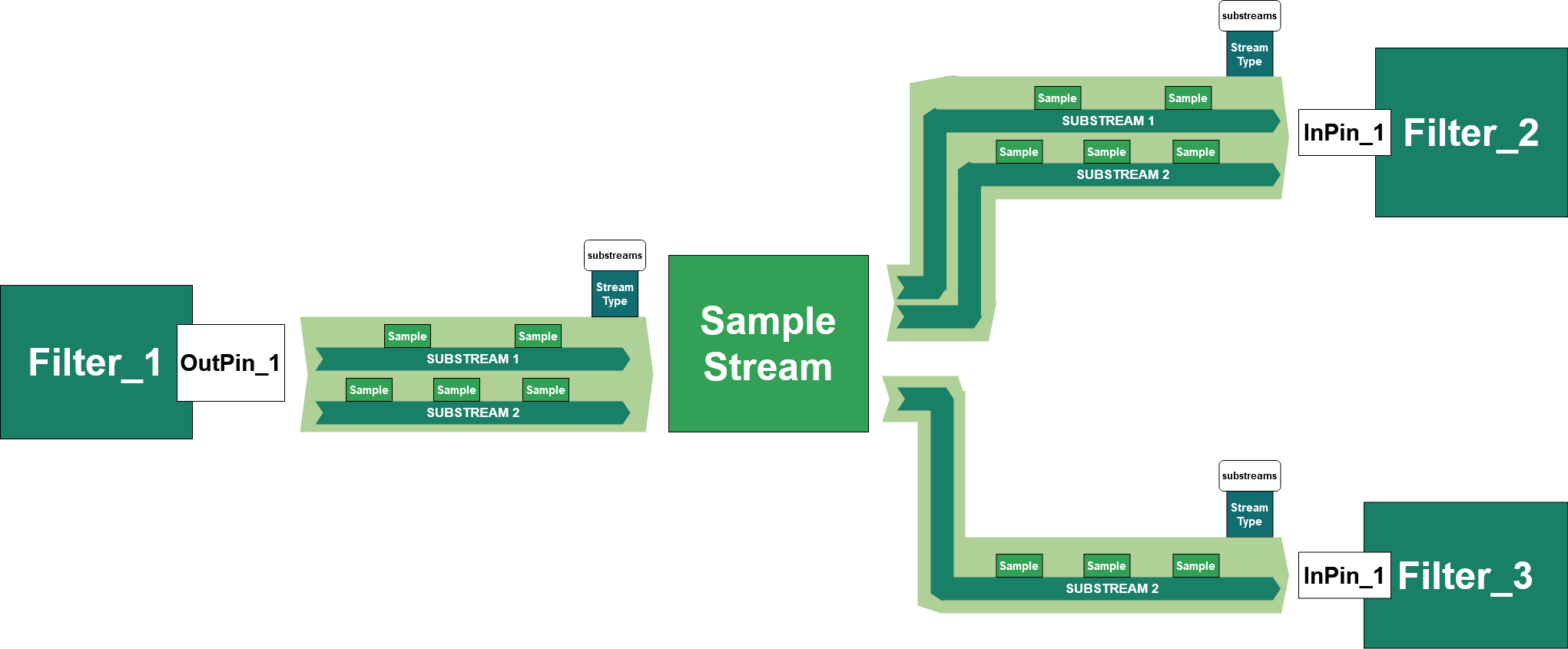

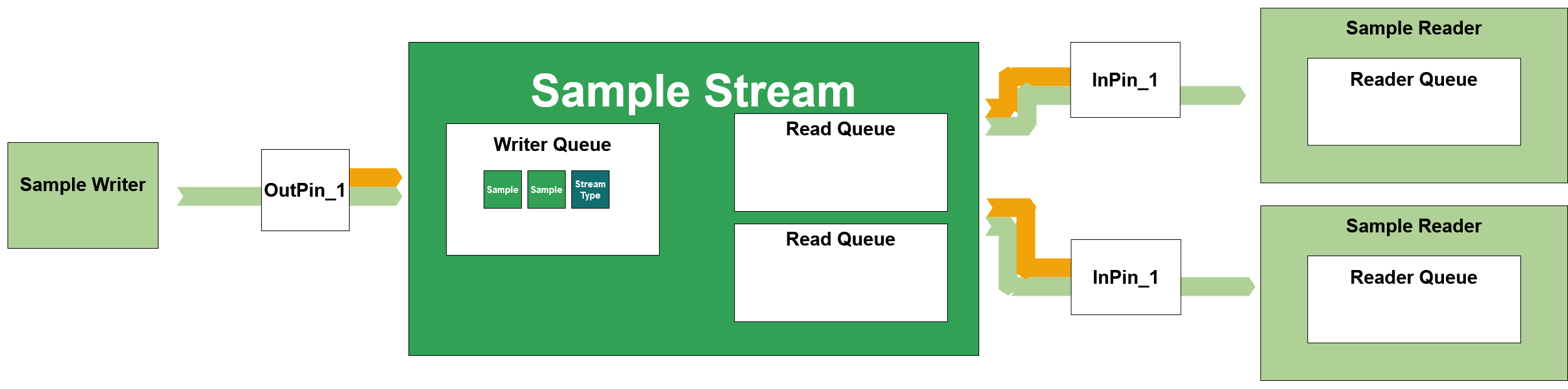

ADTF provides a default implementation of the adtf::streaming::ISampleStream.

A sample stream is a mediator between pins and forward samples and data triggers.

Binding Proxy

The binding proxy will connect formal client/server interfaces between filters.
It always acts as mediator between these clients and servers.

Have a look at the Example Demo Interface Binding, to see how to program and use it.

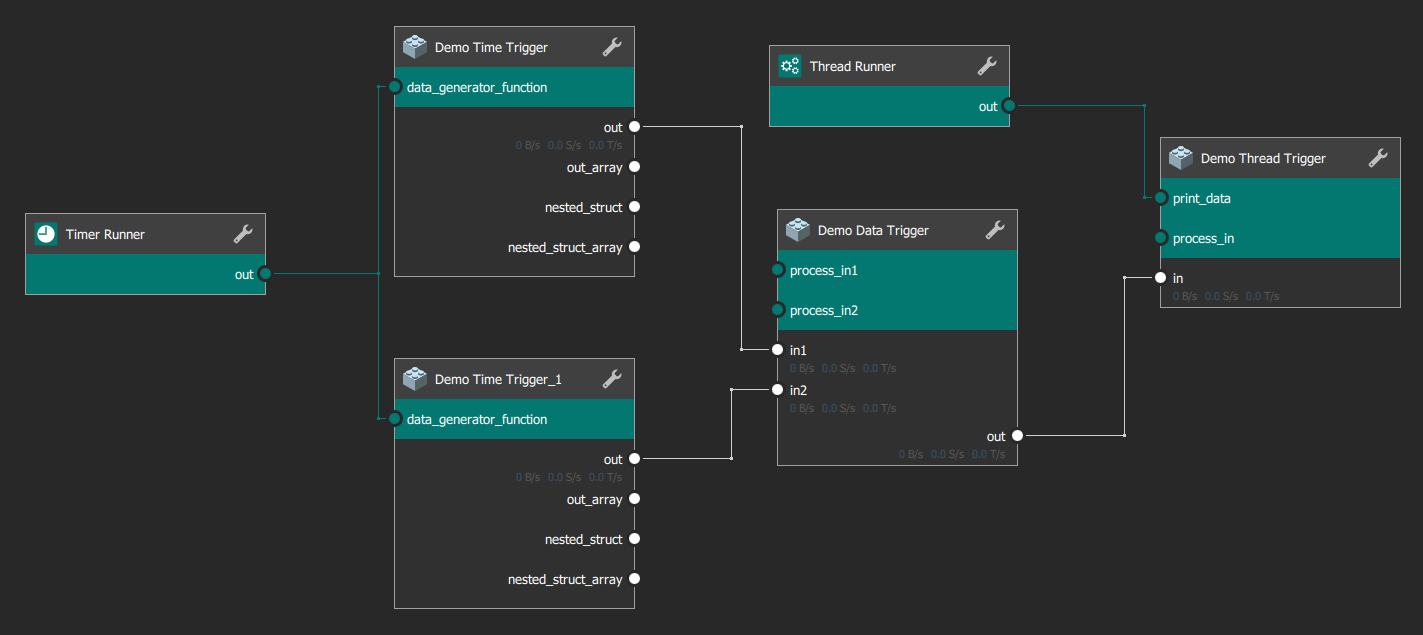

Filter Graph

To create and setup a filter graph you have different building blocks and components (graph objects).
These components can be connected to each other.

Filter Graph State State Machine

The filter graph states can be set by the same interface function like the filter, the adtf::streaming::IFilter::SetState (adtf::streaming::IFilterGraph::tFilterGraphState) method.

Usually the filter graph is managed together with the streaming graph by the Session Manager. It lives only while Runlevel adtf::base::tADTFRunLevel RL_FilterGraph and adtf::base::tADTFRunLevel RL_Running.

Please have a look at Session Initialization to understand the states of the filter graph.

Filter State Machine

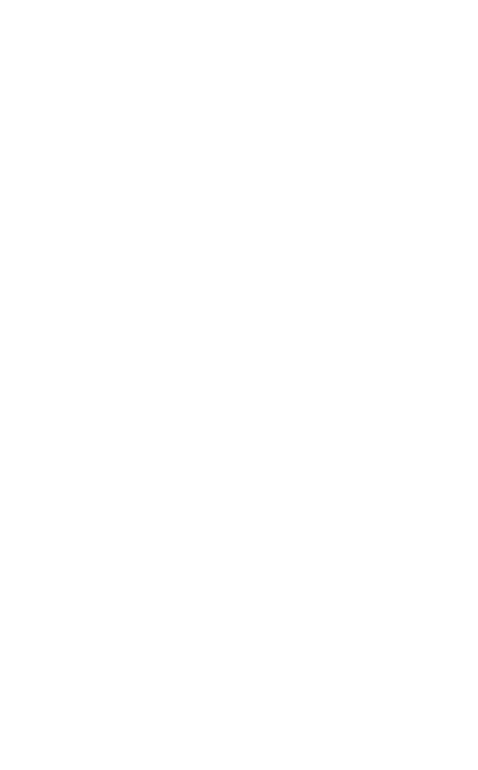

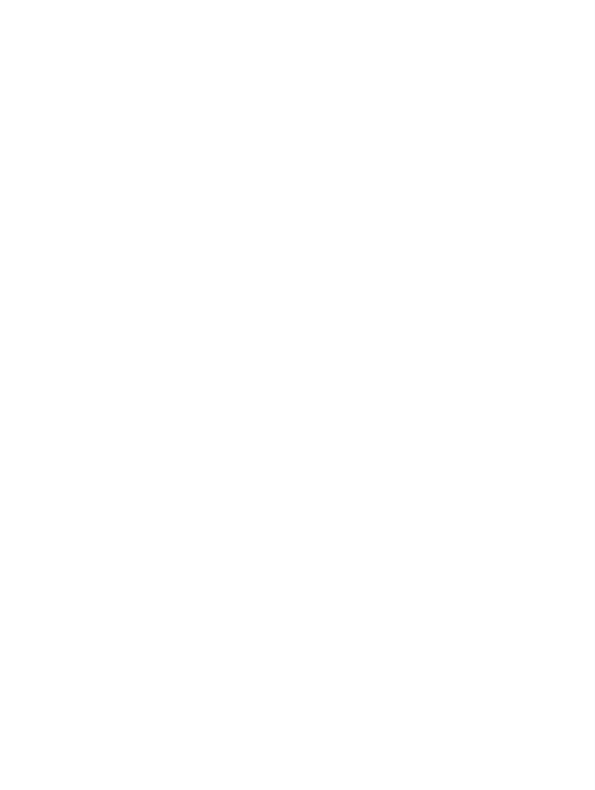

The following state machine is provided by the adtf::streaming::cFilterBase and implementation.

Streaming Service State Machine (within Filter Graph)

Client/Server Connections

A Filter can define some common functionality which must be used by others through a interface agreement:

To publish such an interface you can define a IBindingServer
To subscribe and use such an interface you can define a IBindingClient

While interconnecting these items the client can obtain the servers interface.

Warning: Do not use interface binding to add samples to the data pipe or to trigger the trigger pipe.
Otherwise you could have undefined behaviour!

Connection Overview

To build up a graph synchronous connections are part of a trigger pipe.
Connections have a category left, middle or right and some constrainst which item is connectable to whom.

Please consider the following table:

Source	Destination	Sync/Async
interface inport (adtf::streaming::IFilterGraphInterfaceClientPort)	filter binding client (adtf::streaming::IBindingClient)	does not matter
data Inport (adtf::streaming::IFilterGraphDataInPort)	sample stream (adtf::streaming::ISampleStream)	always sync
filter binding server (adtf::streaming::IBindingServer)	binding proxy (adtf::streaming::IBindingProxy)	does not matter
filter output pin (adtf::streaming::IOutPin)	sample stream (adtf::streaming::ISampleStream)	sync or async
filter input pin (adtf::streaming::IInPin)	filter runner input pin (adtf::streaming::IRunner)	sync (defines a data trigger)
filter runner input pin (adtf::streaming::IRunner)	filter output pin (adtf::streaming::IOutPin)	sync (defines a internal data trigger on the output pin)
active runner (adtf::streaming::IActiveRunner)	filter runner input pin (adtf::streaming::IRunner)	always sync (defines the time trigger or thread trigger)
active runner (adtf::streaming::IActiveRunner)	sample stream (adtf::streaming::ISampleStream)	always sync
filter runner input pin (adtf::streaming::IRunner)	filter runner input pin (adtf::streaming::IRunner)	sync (forwards the trigger)
sample stream (adtf::streaming::ISampleStream)	filter input pin (adtf::streaming::IInPin)	sync or async
sample stream (adtf::streaming::ISampleStream)	sample stream (adtf::streaming::ISampleStream)	sync or async
sample stream (adtf::streaming::ISampleStream)	data outport (adtf::streaming::IFilterGraphDataOutPort)	always sync
binding proxy (adtf::streaming::IBindingProxy)	filter binding client (adtf::streaming::IBindingClient)	does not matter
binding proxy (adtf::streaming::IBindingProxy)	interface outport (adtf::streaming::IFilterGraphInterfaceServerPort)	does not matter
runner inport (adtf::streaming::IFilterGraphRunnerPort)	filter runner input pin (adtf::streaming::IRunner)	always sync

Note: Note that the Substream Selector as special adaption of the Sample Stream also implements an ISampleStream and can be so the replacement of any sample stream occurence within the overview.

Subgraph

Subgraphs are filter graph instances that are added to another filter graph.

Note: These sub Graphs are treated like filters!

On changing filter graphs state the subgraph state will be set before all other objects as one specific characteristic. See filter state machine for more details.

Filter Graph Ports

Since filter graphs can be added as a subgraph the filter graph must clearly define its data binding, interface binding and runtime behaviour to the filter graph it is embedded to (like a "common" filter as well).

The filter graphs data access points are data inports and data outports:

Data outports are treated similar to output pins of the subgraph to define outgoing streaming data to the data pipe.
Data inport are treated similar to input pins of the subgraph to define incoming streaming data from the data pipe.

The filter graphs runtime behaviour can be configured with the help of runner inports:

Runner inports are treated similar runner input pins and will forward the trigger pipe.

The filter graphs interface binding items are interface inports and interface outports.

To forward a server object you can add a interface outport.
To forward an client object you can add a interface inport.

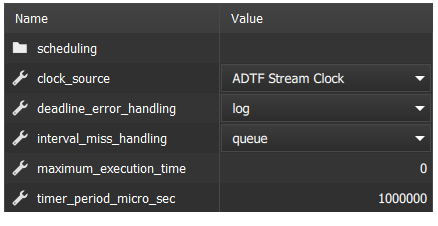

Property

Properties are the possibility to adjust some capabilities of the filter without re-compiling.
While using it within the filter graph you can adjust its behaviour.

Example for a property

#include <adtffiltersdk/adtf_filtersdk.h>

class cMyFilter : public adtf::filter::cFilter
{
public:
    ADTF_CLASS_ID_NAME(cMyFilter, "my_constant_data_generator.filter.example.cid", "My Constant Data Generator");

    cMyFilter()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;

        //give the output pin a name
        m_pWriter = CreateOutputPin<pin_writer<uint32_t>>("OutPin_1", stream_type_plain<uint32_t>());

        //Create a runner and give a hint to connect a timer with a cycle time of 100ms
        //as long as there is no connection within the Filter Graph to this Runner, no Trigger event is received!
        using namespace std::chrono_literals;
        m_pRunner = CreateRunner("Runner_1", cTimerTriggerHint(100ms));

        //register the property value with a name
        RegisterPropertyVariable("constant", m_nConstantProperty);
    }

    //implement the Process method to react on the Trigger
        //the default Filter implementation will register this method to the Runner
    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
                    adtf::streaming::IRunner* /*pRunner*/) override
    {
        //the property value can be access via assignment
        uint32_t nCurrentValueToWrite = m_nConstantProperty;
        //we write the value into the writer for the pin
        RETURN_IF_FAILED(m_pWriter->Write(tmTimeOfTriggering, nCurrentValueToWrite));
        RETURN_NOERROR;
    }

private:
    adtf::streaming::IRunner* m_pRunner = nullptr;
    adtf::filter::pin_writer<uint32_t>* m_pWriter = nullptr;

    //define a property variable that contains the current value of your property
    adtf::base::property_variable<uint32_t> m_nConstantProperty = 0;
};

For a full description see adtf::base.

Streaming Graph

Warning: Please note that as of ADTF 3.8 and later, we are no longer advocating the use of streaming graphs but encourage you to use a filter graph instead. There is no support anymore, even no more UI for it, some defintions, classes and states only exists because of non-breaking ABI requirements.
The idea of the separation was that you can exchange arounded functionality (e.g. hardware devices or playback/simulation interfaces) and reuse the embedded core functionality (as filter graph within the streaming graph) in different scenarios and runlevels.
But you can design this scenario also with filter graphs and subgraphs, even included from different sessions.

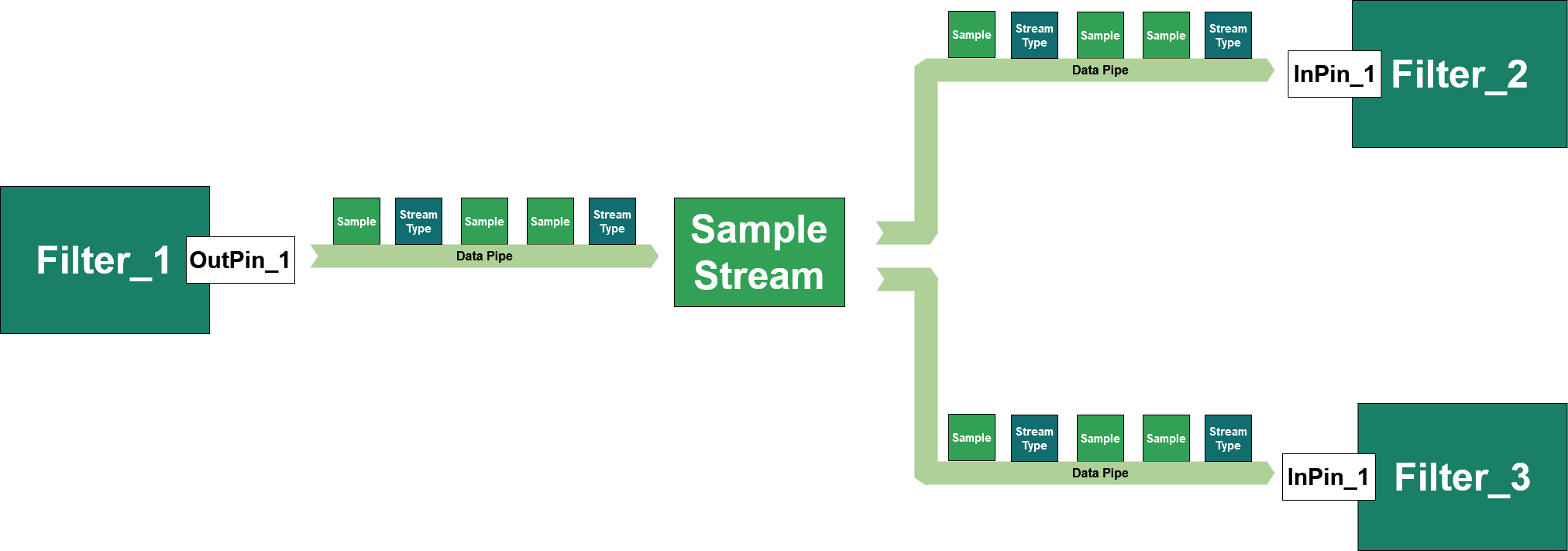

Data Pipe

The data pipe within a filter graph is part of the connection between sample writers and sample readers.
Within ADTF one common data pipe starts at the sample writer and its output pin of a sending filter, over one sample stream, to one or more input pins and their corresponding sample readers.

Sample

Data are packed into so called samples that are containers for any kind of data and refer to streaming data as well as some important meta information (adtf::streaming::ISample)

Samples have:

a timestamp to get a time relation for each data.
a sample buffer which is usually a reference to a memory block containing the user data.
optional sample info
an optional substream id for substreams (see adtf::streaming::ISample::SetSubStreamId / adtf::streaming::ISample::GetSubStreamId)

SetTime(tNanoseconds) : tResult
GetTimeNs() const : tNanoseconds

SetSubstreamId(uint32_t) : void
GetSubstreamId() const : uint32_t

Lock(ISampleBuffer) const : tResult
WriteLock(ISampleBuffer) : tResult
GetSampleInfo(ISampleInfo) : tResult

Note: There is no classifier on the sample that reveals what kind of data is being sent.
A classification is done via stream type being also part of the stream.

Sample Buffer

The sample buffer is the content of a sample and references a memory block.

GetSize() : size_t
Read() : tResult
Write() : tResult

Sample Info

There is a possibility to add additional information to a sample. Visit the adtf::streaming::ISample::GetSampleInfo method for getting to know how to add these additional values to the samples instance.

Warning: Do not use this to add data!
Using it with more than two values is expensive!

Set an additional sample info value:

using namespace adtf::streaming;
//Using output sample data
double m_fValueToWrite;

m_fValueToWrite = 124;
//assign the counter value to a newly created sample!
output_sample_data<double> oSampleData(tmTimeOfTriggering, m_fValueToWrite);
//set the a counter if necessary ... use case: Frame Counter from a camera
RETURN_IF_FAILED(oSampleData.SetSampleInfo(ISampleInfo::SAI_Counter, ++m_nFrameCounter));

//write the sample to the sample writer
*m_pWriter << oSampleData.Release();

Get an additional sample info value:

using namespace adtf::streaming;

//read additional info from the sample
m_nFrameCounter = get_sample_info(*pSample, ISampleInfo::SAI_Counter);

Referenced Sample

There are possibilities to reference data instead of copying it, but usually the filter receiving samples will queue them.
For that, you have to make sure, the referenced data lives as long as the sample lives within the filter graph. If you really need to use that have a look at adtf::streaming::cReferenceSample.

Note: So please keep in mind: If you are using referenced sample buffers, your whole application must be able to deal with that!
Usually this does not work for filters you did not program by yourself.

Stream Type

A stream type has:

A unique name for stream meta type, i.e. adtf/video, adtf/default, adtf/audio or adtf/plaintype.
Properties to describe the content of samples.

A stream meta type defines which properties are set within the stream type.

For a adtf/video this will be i.e. width, height, bitsperpixel, pixelformat.
For a adtf/default this will be a structural description of structral data with md_struct and md_definitions
See also Overview of writing and reading samples

As an example, one possible instance is a description for a video stream with a unique type name adtf/image.
A video stream may be described via following properties:

pixel_width - 800 ... The width of one frame of the video stream as a int32_t - integer value of 800.
pixel_height - 600 ... The height of one frame of the video stream as a int32_t - integer value of 600.
format_name - A(8)R(8)G(8)B(8) ... The format name of the of the video stream as a string value of A(8)R(8)G(8)B(8) describing the pixelformat.

To instantiate such a stream type we may use the class adtf::streaming::cStreamType or the template adtf::streaming::stream_type.

#include <adtfstreaming3/adtf_streaming3.h>

void create_streamtype_video()
{
    using namespace adtf::ucom;
    using namespace adtf::streaming;

    //creating an instance of the Stream Type
    //we MUST use a predefined Stream Meta Type for the name and the predefined properties !
    object_ptr<IStreamType> pStreamType = make_object_ptr<stream_type_image<>>();

    //set the values of the properties
    //the names of the properties are defined at "stream_meta_type_image" struct
    set_property(*pStreamType, stream_meta_type_image::PixelWidth, 800);
    set_property(*pStreamType, stream_meta_type_image::PixelHeight, 600);
    set_property(*pStreamType, stream_meta_type_image::FormatName, "A(8)R(8)G(8)B(8)");
}

Stream Meta Type

The possible stream types will be defined by known stream meta types, which defines the possible unique name and the set of possible properties corresponding to that name.
As shown in the example above, an instance of a stream type can only be created with such a stream meta type definiton.

The stream meta type must implement the adtf::streaming::IStreamMetaType interface. This interface will provide following information:

Custom Stream Meta Types

The stream type implementation class adtf::streaming::stream_type will use the generator class adtf::streaming::stream_meta_type, which defines the unique name of the stream meta type by a variable MetaTypeName.
Additionally, a set of existing properties and there default values are set within the static function SetProperties.

Use following implementation for own stream meta type definitions:

struct my_custom_stream_meta_type
{
    //you must define the Metatype name as a variable "MetaTypeName"
    static constexpr const tChar *const MetaTypeName = "cppDev/my_custom_type";

    //this is a property to define a property name which identifies the content by the help of a number
    static constexpr const tChar *const SecretContentID = "secret_content_id";
    static constexpr const tChar *const Version = "version_of_type";
    static void SetProperties(const adtf::ucom::iobject_ptr<adtf::base::IProperties>& pProperties)
    {
        //we set the default values of the stream type
        pProperties->SetProperty(adtf::base::property<uint16_t>(SecretContentID, 0));
        pProperties->SetProperty(adtf::base::property<adtf_util::cString>(Version, "cppDev 2020-1.0"));
    }
};

If you want to use the custom stream type use following code:

//usage of the @ref my_custom_stream_meta_type
void usage_of_own_type()
{
    using namespace adtf::ucom;
    using namespace adtf::streaming;
    //we create a streamtype

    //we MUST use a predefined stream meta type for the name and the predefined properties !
    object_ptr<IStreamType> pStreamType = make_object_ptr<stream_type<my_custom_stream_meta_type>>();

    //we set the secret content to the 12ish content and leave the version by default
    set_property(*pStreamType, my_custom_stream_meta_type::SecretContentID, 12);
}

AcceptType and IsCompatible

One important part of the data pipe between filters are stream type updates.
Before a sample has been received at least one stream type will be received that describes the sample content.
Usually, the implementation can handle only incoming data with one clear defined stream type. This clear defined type is usually set while setting up the readers for a corresponding pin:

            // Create a stream type for plain c-type data
            object_ptr<IStreamType> pStreamType = make_object_ptr<stream_type_plain<uint32_t>>();

            // Create the pins for the Readers ..
            RETURN_IF_FAILED(create_pin(*this, m_oReader1, "in1", pStreamType));
            RETURN_IF_FAILED(create_pin(*this, m_oReader2, "in2", pStreamType));

While receiving a stream type the default implementation of the adtf::streaming::cSampleReader will call internally an AcceptType function to accept or reject the incoming type.
This implementation uses either the given user callback function (adtf::streaming::cSampleReader::SetAcceptTypeCallback) or the implementation of the adtf::streaming::IStreamMetaType::IsCompatible function of the current valid type.

To do so, the stream meta type implementation of the current valid type is retrieved and its IsCompatible function is used.

Note: These IsCompatible implementations will not automatically check the unique stream meta type name for equality!
Sometimes it will have a look at the values of the properties only. For a complete overview of all delivered stream meta types, their properties and the IsCompatible implementation see next chapter.

operator== and is_compatible

The adtf::streaming::operator== will only check the stream meta type names of the given stream type (adtf::streaming::IStreamType) and compares them.

The global function adtf::streaming::is_compatible will follow the IsCompatible implementation of the right-hand side stream type ExpectedType and its corresponding the stream meta type.

Note: Mind, the stream meta type of oExpectedType defines the IsCompatible comparison method.

For example:


    using namespace adtf::ucom;
    using namespace adtf::streaming;
    using namespace adtf::mediadescription;

    //we create a plain type for int32_t
    auto pPlainType = make_object_ptr<stream_type_plain<int32_t>>();

    //we create a structure description and its default DDL type
    struct INT32
    {
        int32_t m_nValue;
    };
    auto oDescriptionForINT32 = structure<INT32>("INT32");
    oDescriptionForINT32.Add("m_nValue", &INT32::m_nValue);
    auto pDDLType = make_object_ptr<stream_type_default<>>(oDescriptionForINT32);

    //we create an image type
    using namespace adtf::streaming::stream_image_format;
    tStreamImageFormat oFormat = { ADTF_IMAGE_FORMAT(ABGR_32), 800, 600, 0, PLATFORM_BYTEORDER };
    auto pImageType = make_object_ptr<stream_type_image<>>(oFormat);

    //evaluate the compatibility by the is_compatible return value
    tResult oErrCompat = ERR_NOERROR;

    //using is_compatible pPlainType to check and pDDLType expected
    oErrCompat = is_compatible(*pPlainType, *pDDLType); //ERR_NOERROR -> "adtf/default" meta type checks for existing "md_struct" and "md_description" properties
                                                        //                using stream_type_plain will set these properties (but plain-type itself
                                                        //                does not really need it)

    //using is_compatible pDDLType to check and pPlainType expected
    oErrCompat = is_compatible(*pDDLType, *pPlainType); //ERR_FAILED -> "adtf/plaintype" meta type checks for existing "c-type" property
                                                        //               and expects the value

    //using is_compatible pDDLType to check and pImageType expected
    oErrCompat = is_compatible(*pDDLType, *pImageType); //ERR_FAILED -> "adtf/image" meta type checks for the same meta type name "adtf/image"
                                                        //              "adtf/default" != "adtf/image"


Default Stream Meta Types

This section will give an overview of all default ADTF Stream Meta Types and their properties.

Stream Meta Type "adtf/anonymous"

Namespace: Defined in namespace adtf::streaming.

Stream Meta Type concept class: adtf::streaming::stream_meta_type_anonymous

Description: Use this Stream Meta Type only if no property should be set and you do not share and record these data. Anonymous can be any kind of data.

Generator class: adtf::streaming::stream_type by calling:

stream_type<stream_meta_type_anonymous>();

Properties: No properties.

IsCompatible: This implementation of IsCompatible will always return ERR_NOERROR and accept all other stream meta type names.
Fully documentation: adtf::streaming::stream_meta_type_anonymous::IsCompatible

Stream Meta Type "adtf/plaintype"

Namespace: Defined in namespace adtf::streaming

Stream Meta Type concept class: adtf::streaming::stream_meta_type_plain

Description: Use this Stream Meta Type if your sample data will be any of this type: bool, uint8_t, int8_t, uint16_t, int16_t, uint32_t, int32_t, uint64_t, int64_t, float, double or plain array T[], std::array, std::vector of them.

Generator class: adtf::streaming::stream_type_plain

Properties

IsCompatible: Compatible to all other stream types of any stream meta type, where the following conditions are met:

the property value of the properties adtf::streaming::stream_meta_type_plain::PlainTypeProperty are equal in both types.
the property value of the properties adtf::streaming::stream_meta_type_plain::ArraySize are equal or the expected ArraySize is 0
the property value of the properties adtf::streaming::stream_meta_type_plain::DataEndianess are equal in both types if value type is greater than 1 byte

Fully documentation: adtf::streaming::stream_meta_type_plain::IsCompatible

Stream Meta Type "adtf/default"

Namespace: Defined in namespace adtf::mediadescription

Stream Meta Type concept class: adtf::mediadescription::stream_meta_type_default

Description: Use this Stream Meta Type if your sample data are structured and the memory layout can be described via DDL Specification.

Generator class

Properties

IsCompatible: Compatible to all other stream types of any stream meta type, where the following conditions are met:

the property value of the properties adtf::streaming::stream_meta_type_default::strMDDataSerialized are equal in both types (both serialized or both deserialized, default is "md_serialized"="false")
the property values of adtf::streaming::stream_meta_type_default::strMDStructProperty and strMDDefinitionsProperty must be exactly the same, OR
if the property values adtf::streaming::stream_meta_type_default::strMDStructProperty and adtf::streaming::stream_meta_type_default::strMDDefinitionsProperty are not equal the given complex types in strMDStructProperty must be semantically equal (see adtf_ddl::cDDLCompare::IsEqualType)

Fully documentation: adtf::streaming::stream_meta_type_default::IsCompatible

Stream Meta Type "adtf/image"

Namespace: Defined in namespace adtf::streaming

Stream Meta Type concept class: adtf::streaming::stream_meta_type_image

Description: Use this Stream Meta Type for describing a video stream with single frames and there format and set the values with set_stream_type_image_format.

Generator class: adtf::streaming::stream_type_image

Properties

IsCompatible: Uses the default implementation of IsCompatible and will return ERR_NOERROR only if:

adtf::streaming::IStreamMetaType::GetMetaTypeName of oTypeToCheck is equal to GetMetaTypeName of oTypeExpected
adtf::streaming::IStreamMetaType::GetVersion of oTypeToCheck is equal to GetVersion of oTypeExpected

Fully documentation: adtf::streaming::cStreamMetaType::IsCompatible

Stream Meta Type "adtf/audio"

Namespace: Defined in namespace adtf::streaming

Stream Meta Type concept class: adtf::streaming::stream_meta_type_audio

Description: Use this Stream Meta Type for describing a audio stream with samples and sample rate.

Generator class: stream_type_audio

Properties

IsCompatible: Uses the default implementation of IsCompatible and will return ERR_NOERROR only if:

adtf::streaming::IStreamMetaType::GetMetaTypeName of oTypeToCheck is equal to GetMetaTypeName of oTypeExpected
adtf::streaming::IStreamMetaType::GetVersion of oTypeToCheck is equal to GetVersion of oTypeExpected

Fully documentation: adtf::streaming::cStreamMetaType::IsCompatible

Stream Meta Type "adtf/string"

Namespace: Defined in namespace adtf::streaming

Stream Meta Type concept class: adtf::streaming::stream_meta_type_string

Description: Use this Stream Meta Type if your sample data will be any of this type: std::string, std::u16string.

Generator class: adtf::streaming::stream_type_string

Properties

IsCompatible: Compatible to all other stream types of any stream meta type, where the following conditions are met:

the property value of the property adtf::streaming::stream_meta_type_string::Encoding are equal in both types.
the property value of the property adtf::streaming::stream_meta_type_string::Encoding is adtf::streaming::stream_meta_type_string::EncodingValueUnspecified at expected side
the property value of the property adtf::streaming::stream_meta_type_string::DataEndianess is equal in both types if the adtf::streaming::stream_meta_type_string::Encoding identifies a character size greater than 1 byte

Fully documentation: adtf::streaming::stream_meta_type_string::IsCompatible

Stream Meta Type "adtf/substreams"

Namespace: Defined in namespace adtf::streaming

Stream Meta Type concept class: adtf::streaming::stream_meta_type_substreams

Description: Use cSubStreamTypes to create a Stream Type instance for this Stream Meta Type.

Creator class: adtf::filter::cSubStreamTypes

Properties

IsCompatible: This implementation of IsCompatible will accept all other stream meta types and will return ERR_NOERROR only if:

Property adtf::streaming::stream_meta_type_substreams::SubStreams are equal
the all existing SubstreamName in oTypeExpected also exists in oTypeToCheck (Currently the stream meta type of the substream ist not checked)

Fully documentation: adtf::streaming::stream_meta_type_substreams::IsCompatible

Substreams

Using substreams is one possibility to reduce pin and connection appearance within the filter graph.

Substreams have been introduced to address handling of large amounts of different signals or complex data structures by multiplexing them on single output pin/sample stream.
This includes two new concepts:

Definition

Using substreams is one possibility to reduce pin and connection appearance within the data pipe of the filter graph.

They are defined by using a special stream type with the adtf/substreams stream meta type.
This stream type stores the following information for each substream:

Name, the name of the substream (i.e. the name of the signal of which the samples are streamed via this substream).
Id, a numeric id identifing the samples of the substream.
Stream Type, the stream type of the substream.

See adtf::filter::cSubStreamTypes for information on how to create such a substream stream type.

Each sample transmitted via such a sample stream is then assigned the id of the substream that it belongs to, see adtf::streaming::ISample::SetSubStreamId and adtf::streaming::set_sample_substream_id().

To select samples of a specific substreams for processing in other filters we provide a special sample stream implementation Substream Selector, that will select and forward only the stream types and samples of a single substream.

You can use the Substream Dissector to dissect a "normal" sample stream into substreams containing all individual elements.

We provide the following programming examples on how to use substreams:

Request Handling

In order to handle dynamic processing of substreams we introduced the substream request handling architecture.

This mechanism enables consumers the inform sources about the data that they are interested in.
So by default all substream sources will not provide any data if no one requests anything.

The new adtf::streaming::IStreamingRequests interface is forwarded transparently via sample streams.
Via this interface a consumer can tell a source which substream samples it likes to recieve.
For convenience access to this interface is provided via the default sample reader implementation (adtf::streaming::cSampleReader::RequestSamples).
To provide request support for substreams you can use the adtf::streaming::requestable_writer template, but most of the time just use the adtf::filter::cGraphObject::CreateRequestableOutputPin method.

Note: All sinks like components (recorders, displays, ...) that consume substreams are required to request transmission of the substreams that they are interested in.
They will not receive any data otherwise!; During playback, requests on streams originating from the player will proceeed, but do not have any effect on which samples are transmitted via the sample stream.

We provide the following programming examples on how to provide request support for substreams:

Example Demo Requestable Substream Filter

Output Pin and Sample Writer/Pin Writer

The data a filter can create and transmit are samples.
The formal description and classification of those samples and its content is done by a stream type.

Within the filter you need to create output pins to identify a connection point to this filter, where data can be written out.
Write samples and set stream types onto a connected stream with the help of a sample writer (adtf::streaming::ISampleWriter).

Have a look at the docummentation of the adtf::filter::cGraphObject::CreateOutputPin function to add a output pin to the filter:

class cMyFilter: public adtf::filter::cFilter
{
    public:
        //this will define an ID of the filter can be used to create the filter
        ADTF_CLASS_ID_NAME(cMyFilter, "my_filter.filter.example.cid", "My Filter");

        cMyFilter()
        {
            //give the output pin a name
            //store the created writer in a member function
            m_pWriter = CreateOutputPin("OutPin_1");
        }
    private:
        adtf::streaming::ISampleWriter* m_pWriter = nullptr;
};

Creating and writing samples

Samples are memory buffers. You should always copy your data into these sample buffers.

The following examples of writing data to a sample are recommended:

Use of output_sample_data<T> template:

using namespace adtf::streaming;
//Using output sample data
m_nCounter = 124;
//assign the counter value to a newly created sample with the help of output_sample_data
//and write the sample to the sample writer
*m_pWriter << output_sample_data<uint64_t>(tmTimeOfTriggering, m_nCounter);

Use of output_sample_data<T> template and set the sample time:

using namespace adtf::streaming;
// Using output sample data as stack variable
m_nCounter = 124;
output_sample_data<uint64_t> oSampleData(tmTimeOfTriggering, m_nCounter);
//write the sample to the sample writer by releasing oSampleData
*m_pWriter << oSampleData.Release();

Set a memory buffer (and so copy the content) to the sample:

//allocate a sample and set the buffer
using namespace adtf::streaming;
using namespace adtf::ucom;

m_nCounter = 124;

//create a sample with time
object_ptr<flash::ISample> pSample;
RETURN_IF_FAILED(alloc_sample(pSample, tmTimeOfTriggering));
//this will copy memory buffer to the samples content, time can be changed here (but tmTimeOfTriggering is the best mostly)
RETURN_IF_FAILED(pSample->Set(tmTimeOfTriggering, &m_nCounter, sizeof(m_nCounter)));

*m_pWriter << ucom_object_ptr_cast<ISample>(pSample);

Write the content of a memory buffer to the samples buffer:

//allocate a sample and set the buffer
using namespace adtf::streaming;
using namespace adtf::ucom;

m_nCounter = 124;

//create a sample
object_ptr<ISample> pSample;
//you should set the time immediatelly while creating the sample
RETURN_IF_FAILED(alloc_sample(pSample, tmTimeOfTriggering));

//to write data you must lock the samples content
//BUT CAUTION: You need also to unlock before writing the data to the Sample Writer !
{
    //we automatically unlock if we exit this context
    object_ptr_locked<ISampleBuffer> oBuffer;
    RETURN_IF_FAILED(pSample->WriteLock(oBuffer, sizeof(m_nCounter)));

    //wrapup the counter memory and copy it to the samples buffer
    //it is always a copy!
    RETURN_IF_FAILED(oBuffer->Write(adtf::base::adtf_memory<uint64_t>(&m_nCounter)));
}

*m_pWriter << pSample;

Write a string content to the sample buffer:

//allocate a sample and set the buffer
using namespace adtf::streaming;
using namespace adtf::ucom;

std::string strWriteToSampleString("This is a cString I want to write!");

//create a sample
object_ptr<ISample> pSample;
//you should set the time immediatelly while creating the sample
RETURN_IF_FAILED(alloc_sample(pSample, tmTimeOfTriggering));

//to write data you must lock the samples content
//BUT CAUTION: You need also to unlock before writing the data to the Sample Writer !
{
    //we automatically unlock if we exit this context
    object_ptr_locked<ISampleBuffer> oBuffer;
    RETURN_IF_FAILED(pSample->WriteLock(oBuffer, strWriteToSampleString.size()));

    //wrapup the string with a adtf_memory and so copy it to the samples buffer
    //it is always a copy while writing!
    RETURN_IF_FAILED(oBuffer->Write(adtf::base::adtf_memory<std::string>(&strWriteToSampleString)));
}

*m_pWriter << pSample;

Type based writing to a output pin writer:

    //...
    cMyFilterTypeBased()
    {
        //give the output pin a name
        //create a pin writer to write the sample content directly to the writer!
        m_pWriter = CreateOutputPin<adtf::filter::pin_writer<uint64_t>>("OutPin_1");

        //Create a runner and give a hint to connect a timer with a cycle time of 100ms
        //as long as there is no connection within the Filter Graph to this Runner, no Trigger event is received!
        using namespace std::chrono_literals;
        m_pRunner = CreateRunner("Runner_1", cTimerTriggerHint(100ms));
    }

    //implement the Process method to react on the Trigger
    //the default Filter implementation will register this method to the Runner
    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
        adtf::streaming::IRunner* /*pRunner*/) override
    {
        //write the sample to the sample writer
        //always use the tmTimeOfTriggering, if you have it!
        RETURN_IF_FAILED(m_pWriter->Write(tmTimeOfTriggering, m_nCounter++));
        return {};
    }
private:
    adtf::filter::pin_writer<uint64_t>* m_pWriter = nullptr;
    adtf::streaming::IRunner* m_pRunner = nullptr;

    uint64_t m_nCounter = 0;
    //...

Input Pin and Sample Reader/Pin Reader

The incoming samples can be read via input pins and sample readers.
Input pins identify a connection point to the filter. The incoming stream contains samples and stream types. Sample readers (interface adtf::streaming::ISampleReader) are queues to buffer the incoming data.

Usually you will create one reader per input pin or one input pin per reader.
The simplest way to create an input pin is to call the adtf::filter::cGraphObject::CreateInputPin function within the CTOR.

Example to create a input pin in filters CTOR

#include <adtffiltersdk/adtf_filtersdk.h>
#include <chrono>
#include <cinttypes>


class cMyFilter : public adtf::filter::cFilter
{
public:
    ADTF_CLASS_ID_NAME(cMyFilter, "my_filter.filter.example.cid", "My Filter");

    cMyFilter()
    {
        //create the pins AND the readers
        //we store them in member variables
        //we use the second and third parameter with "false" to switch off the Inner Trigger Pipe (see chapter "Trigger Pipe")
        m_pReader1 = CreateInputPin("InPin_1", false, false);

        //Create a runner and give a hint to connect a timer with a cycle time of 100ms
        using namespace std::chrono_literals;
        m_pRunner = CreateRunner("Runner_1", cTimerTriggerHint(100ms), true);
    }

    //implement the process method to react on the trigger
    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
                    adtf::streaming::IRunner* pRunner) override
    {
        //you may check for the runner
        if (m_pRunner == pRunner)
        {
            // example to read from "InPin_1"
            adtf::ucom::object_ptr<const adtf::streaming::ISample> pSample;
            //it is important to read until the queue is empty
            while (IS_OK(m_pReader1->GetNextSample(pSample)))
            {
                //get the content of the Sample
                //we expect to deal with the counter has been writtem in the examples for sample writer (see example "Out Pins and Sample Writers/Pin Writers ")!
                //we use the sample_data helper template to retrieve the sample buffers content
                adtf::streaming::sample_data<uint64_t> oSampleCounter(pSample);
                auto nTime = oSampleCounter.GetTime();
                LOG_INFO("Received data on \"InPin_1\": %" PRIu64 " at time %" PRIi64, *oSampleCounter, nTime);
            }
        }
        else
        {
            RETURN_ERROR_DESC(ERR_INVALID_ADDRESS, "Process called with unknown runner");
        }
        return {};
    }

private:
    adtf::streaming::IRunner*       m_pRunner = nullptr;
    adtf::streaming::ISampleReader* m_pReader1 = nullptr;
};

Reading samples

The following examples of reading data from samples are recommended:

Reading samples with GetNextSample

        // example to read from "InPin_1"
        adtf::ucom::object_ptr<const adtf::streaming::ISample> pSample;
        //this will return an empty sample and error if the queue is empty
        //it is important to read until the queue is empty
        while (IS_OK(m_pReader1->GetNextSample(pSample)))
        {
            //get the content of the Sample
            //we expect to deal with the counter has been writtem in the examples for sample writer before!
            //we use the sample_data helper to retrieve the sample buffers content
            adtf::streaming::sample_data<uint64_t> oSampleCounter(pSample);
            auto nTime = oSampleCounter.GetTime();
            LOG_INFO("Received data on \"InPin_1\": %" PRIu64 " at time %" PRIi64, *oSampleCounter, nTime);
        }

Reading samples with streaming operator

        bool bEndOfStream = false;
        while (!bEndOfStream)
        {
            //read from "InPin_1"
            adtf::ucom::object_ptr<const adtf::streaming::ISample> pSample;
            //read with streaming operator
            *m_pReader1 >> pSample;
            //this will return a valid sample if data where received
            //this will return an empty sample if queue is empty
            //it is important to read until the queue is empty
            if (pSample)
            {
                //get the content of the Sample
                //we expect to deal with the counter has been writtem in the examples for sample writer before!
                //we use the sample_data helper to retrieve the sample buffers content
                adtf::streaming::sample_data<uint64_t> oSampleCounter(pSample);
                auto nTime = oSampleCounter.GetTime();
                LOG_INFO("Received data on \"InPin_1\": %" PRIu64 " at time %" PRIi64, *oSampleCounter, nTime);
            }
            else
            {
                bEndOfStream = true;
            }
        }

Access sample buffer memory with static_cast

using namespace adtf::ucom;
using namespace adtf::streaming;
object_ptr<const ISample> pSample;
//this will return an empty sample and error if the queue is empty
//it is important to read until the queue is empty
while (IS_OK(m_pReader1->GetNextSample(pSample)))
{
    //enter the sample buffer with a read lock
    object_ptr_shared_locked<const ISampleBuffer> oBuffer;
    RETURN_IF_FAILED(pSample->Lock(oBuffer));

    const auto nTime = adtf::streaming::flash::get_sample_time(pSample);
    //this is also possible with stuctured data
    auto pValue = static_cast<const uint64_t*>(oBuffer->GetPtr());
    LOG_INFO("Received data on \"InPin_1\": %" PRIu64 " at time %" PRIi64, *pValue, nTime.nCount);
}


Read sample buffers content with adtf_memory for trivial types

using namespace adtf::ucom;
using namespace adtf::streaming;
using namespace adtf::base;
object_ptr<const ISample> pSample;
//this will return an empty sample and error if the queue is empty
//it is important to read until the queue is empty
while (IS_OK(m_pReader1->GetNextSample(pSample)))
{
    //enter the sample buffer with a read lock
    object_ptr_shared_locked<const ISampleBuffer> oBuffer;
    RETURN_IF_FAILED(pSample->Lock(oBuffer));

    const auto nTime = duration_cast<tTimeStamp>(adtf::streaming::flash::get_sample_time(pSample));
    //Read a trivial type based value
    //this is also possible with stuctured data that are trivially copyable
    uint64_t nValue = {};
    RETURN_IF_FAILED(oBuffer->Read(adtf_memory<uint64_t>(&nValue)));
    LOG_INFO("Received data on \"InPin_1\": %" PRIu64 " at time %" PRIi64, nValue, nTime);
}

Read sample buffers content with adtf_memory for string types

using namespace adtf::ucom;
using namespace adtf::streaming;
using namespace adtf::base;
object_ptr<const ISample> pSample;
//this will return an empty sample and error if the queue is empty
//it is important to read until the queue is empty
while (IS_OK(m_pReader1->GetNextSample(pSample)))
{
    //enter the sample buffer with a read lock
    object_ptr_shared_locked<const ISampleBuffer> oBuffer;
    RETURN_IF_FAILED(pSample->Lock(oBuffer));

    const auto nTime = duration_cast<tTimeStamp>(adtf::streaming::flash::get_sample_time(pSample));
    //Read a string value
    //this will also work for std::string, std::vector and std::array
    std::string strValue = {};
    RETURN_IF_FAILED(oBuffer->Read(adtf_memory<std::string>(&strValue)));
    LOG_INFO("Received data on \"InPin_1\": %s at time %" PRIi64, strValue.c_str(), nTime);
}

Reading stream types

All examples above are using untyped data (anonymous data)! The filter implementation is receiving data while the code expects always some tUInt64 values. To make sure the filter will only accept expected sample content, the data must be classified and stream typed by a stream type. The stream type itself is part of the stream. While receiving, you will always get a stream type first, then samples and a stream type again if it changes.

Reading samples by data trigger

The examples above used only runners which should be connected within the filter graph with an active (timer) runner.
But we can also use a data trigger in our code, so we will be called after an incoming data event on a specified pin.

#include <adtffiltersdk/adtf_filtersdk.h>
#include <cinttypes>

class cMyFilter : public adtf::filter::cFilter
{
public:
    ADTF_CLASS_ID_NAME(cMyFilter, "my_filter.filter.example.cid", "My Filter");

    cMyFilter()
    {
        using namespace adtf::streaming;
        using namespace adtf::filter;
        //create the pins AND the readers
        //we store them in member variables
        //only streams with adtf::streaming::stream_type_plain<uint64_t>() ... otherwise a stream error is set
        //we still use the third and fourth parameter with "false" to switch off the Inner Trigger Pipe (see chapter "Trigger Pipe")
        auto pCreatedReader1 = CreateInputPin("InPin_1",
            stream_type_plain<uint64_t>(),
            false,
            false);
        //We setup our own AcceptType function
        //This receives a type if there is one within the incoming stream
        //How this works: ... each GetNextSample() call will also receive the Stream Types, if so, this function will be called
        //                    usually it will only accept compatible types
        //REMARK: to use SetAcceptTypeCallback the type "adtf::filter::cPinReader" is used instead of "adtf::streaming::ISampleReader"
        pCreatedReader1->SetAcceptTypeCallback(
            [this](const adtf::ucom::iobject_ptr<const IStreamType>& pStreamIncomingType) -> tResult
            {
                //this is the same functionality implemented if you do not set up a own AcceptTypeCallback
                //see the chapter for "Stream Type and Stream Meta Type" what it means to be compatible
                return is_compatible(pStreamIncomingType, stream_type_plain<uint64_t>());
            });
        //now we initialize the member
        m_pReader1 = pCreatedReader1;

        //Create a runner and connect it to the data trigger of the "InPin_1
        m_pRunner = CreateRunner("Runner_1", cDataTriggerHint("InPin_1"), true);
    }

    //implement the process method to react on the data trigger
    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
                    adtf::streaming::IRunner* pRunner) override
    {
        //you may check for the runner
        if (m_pRunner == pRunner)
        {
            // example to read from "InPin_1"
            adtf::ucom::object_ptr<const adtf::streaming::ISample> pSample;
            //this will return an empty sample and error if the queue is empty
            //it is still important to read until the queue is empty, since ADTF 3 may send many samples, but triggering it only once
            while (IS_OK(m_pReader1->GetNextSample(pSample)))
            {
                //get the content of the Sample
                //we expect to deal with the counter has been writtem in the examples for sample writer before!
                //we use the sample_data helper to retrieve the sample buffers content
                adtf::streaming::sample_data<uint64_t> oSampleCounter(pSample);
                auto nTime = oSampleCounter.GetTime();
                LOG_INFO("Received data on \"InPin_1\": %" PRIu64 " at time %" PRIi64, *oSampleCounter, nTime);
            }
        }
        else
        {
            RETURN_ERROR_DESC(ERR_INVALID_ADDRESS, "Process called with unknown runner");
        }
        return {};
    }

private:
    adtf::streaming::IRunner*       m_pRunner = nullptr;
    adtf::filter::cPinReader*       m_pReader1 = nullptr;
};

As you might see in the code example: There is no change on the Process() implementation.
This is one of the ADTF 3 benefits! It might be easy to configure data or time-triggered behaviour within a very late stage.

Data Trigger with ProcessInput()

For your convienience you are able to forward each data trigger to a single method, the ProcessInput() method. Also one single AcceptType() is possible.

#include <adtffiltersdk/adtf_filtersdk.h>

class cMyFilter : public adtf::filter::cFilter
{
public:
    ADTF_CLASS_ID_NAME(cMyFilter, "my_filter.filter.example.cid", "My Filter");

    cMyFilter()
    {
        //create the pins AND the readers
        //we store them in member variables
        //only streams with adtf::streaming::stream_type_plain<uint64_t>() ... otherwise a stream error is set
        m_pReader1 = CreateInputPin("InPin_1",
            adtf::streaming::stream_type_plain<uint64_t>(),
            true, //create a data in trigger and "connect" the ProcessInput to it (see the Inner Trigger Pipe (see chapter "Trigger Pipe"))
            true); //each data trigger is also forwarded to the output (if any)

        //this is the same call as above
        //it will also lead into a synchronized ProcessInput/AcceptType call
        m_pReader2 = CreateInputPin("InPin_2",
            adtf::streaming::stream_type_plain<uint64_t>());
    }

    //override the process method to react on the data trigger
    //Note: You can also call the default implementation
    //    \c RETURN_IF_FAILED(cFilter::AcceptType(pReader, pType));
    //at the beginnging for basic type check, perform additonal checks afterwards or standalone as follows
    tResult AcceptType(adtf::streaming::ISampleReader* pReader,
        const adtf::ucom::iobject_ptr<const adtf::streaming::IStreamType>& pType) override
    {
        if (pReader == m_pReader1)
        {
            //do something accepting incoming type on "InPin_1"
        }
        else if (pReader == m_pReader2)
        {
            //do something accepting incoming type on "InPin_2"
        }

        return {};
    };

    //override the process method to react on the data trigger
    tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
        const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
    {
        if (pReader == m_pReader1)
        {
            //this event was triggered on incoming samples of "InPin_1"
        }
        else if (pReader == m_pReader2)
        {
            //this event was triggered on incoming samples of "InPin_2"
        }

        return {};
    }

private:
    adtf::streaming::IRunner* m_pRunner = nullptr;
    adtf::streaming::ISampleReader* m_pReader1 = nullptr;
    adtf::streaming::ISampleReader* m_pReader2 = nullptr;
};

The good thing about this single point of processing is:

It is easy to use.
It is already synchronized.

Each ProcessInput() and each AcceptType() locks the filter, no parallel call within the filter, no race conditions can appear.
But you should also consider adtf::filter::cGraphObject::CreateInputPinWithCallback before starting to implement huge if-else-if or switch-case commands.

Trigger Pipe

The trigger pipe within ADTF is a connection based trigger path through the filter graph.
Usually it starts with an active runner that triggers the connected items like a runner of a filter.

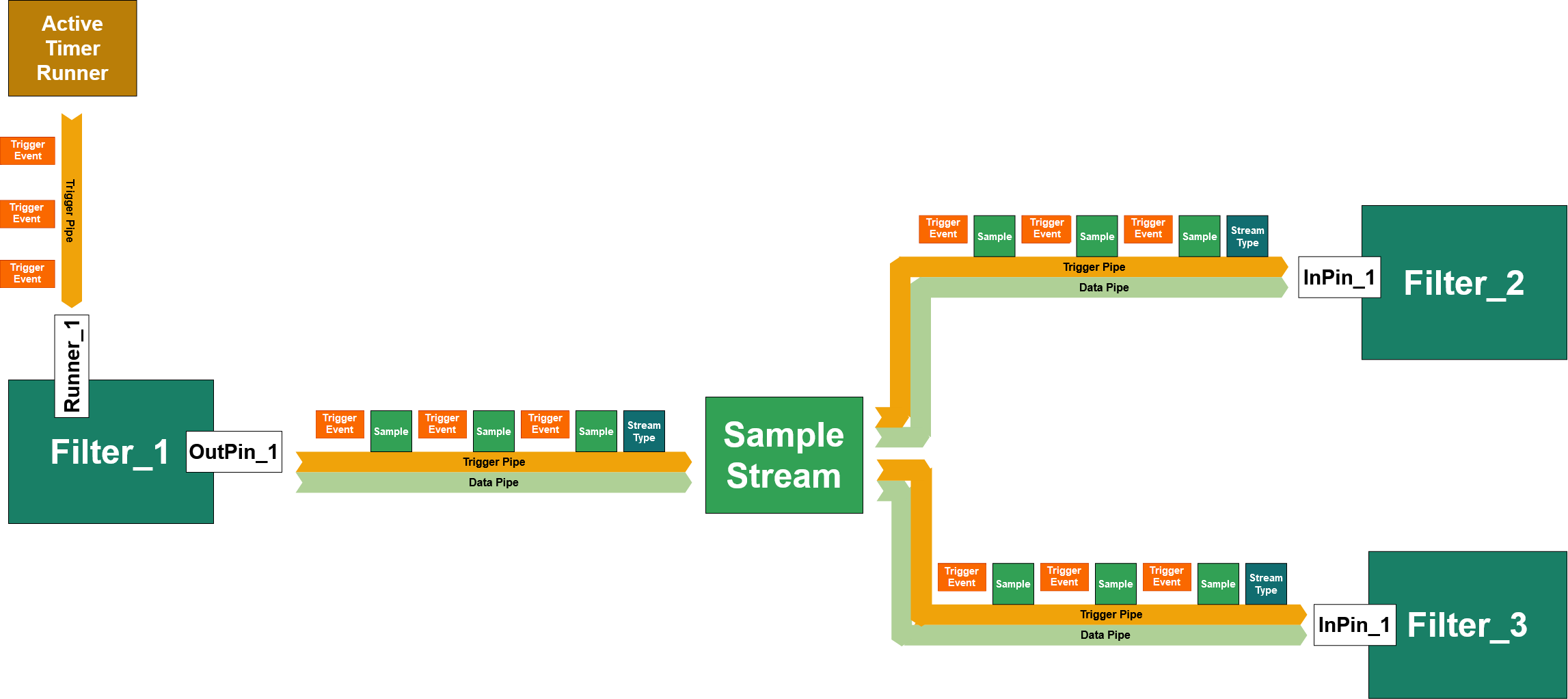

The above example of a trigger pipe shows the Timer Runner as a adtf::streaming::ITriggerPipeSource.

Trigger pipe sources are the very beginning of a trigger pipe.
Each connected item can be discovered with the help of the adtf::streaming::ITriggerPipeSource interface. The connected items of a the trigger pipe are called adtf::streaming::ITriggerPipeItem.
They are also sources for the further items in the trigger pipe.
At the end, a collection of trigger pipes in your filter graph will show you a callgraph and the critical paths.

Note: The trigger event as seen in the picture above is not really an object, it is a adtf::base::IRunnable::Run (adtf::base::IRunnable::tActivationType RUN_TRIGGER) call on adtf::streaming::ITriggerPipeItem.

Following components can be adtf::streaming::ITriggerPipeSource only:

Runners

Following components can be adtf::streaming::ITriggerPipeItem:

Output Pins
Input Pins
Runner Input Pins
Sample Streams

Runner Input Pin and Trigger

Each filter needs at least one function that reacts on trigger events while the filter is processing data in the running state.
Within filters these events are called triggers. To "catch" a trigger you should define a so called runner that is an entry point to connect

a (internal) data trigger ... for incoming events by sample reader.
a time trigger ... for events that are configured within the filter graph by active runner.

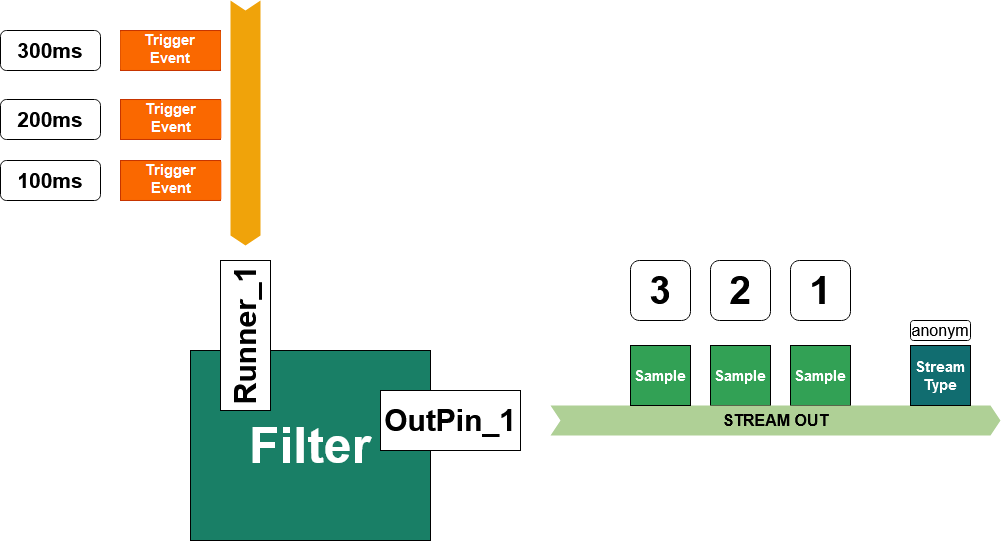

The above filter with one output pin and one runner input pin can be created by the following code:

#include <adtffiltersdk/adtf_filtersdk.h>
#include <chrono>
#include <cinttypes>

class cMyFilter: public adtf::filter::cFilter
{
    public:
        //this will define an ID of the filter can be used to create the filter
        ADTF_CLASS_ID_NAME(cMyFilter, "my_filter.filter.example.cid", "My Filter");

        cMyFilter()
        {
            //give the output pin a name
            m_pWriter = CreateOutputPin("OutPin_1");

            //Create a runner and give a hint to connect a timer with a cycle time of 100ms
            //as long as there is no connection within the Filter Graph to this Runner, no Trigger event is received!
            using namespace std::chrono_literals;
            m_pRunner = CreateRunner("Runner_1", cTimerTriggerHint(100ms));
        }

        //implement the Process method to react on the Trigger
        //the default Filter implementation will register this method to the Runner
        tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
                        adtf::streaming::IRunner* pRunner) override
        {
            //you may check for the runner
            if (m_pRunner == pRunner)
            {
                LOG_INFO("Time of triggering %" PRIi64, tmTimeOfTriggering.nCount);

                //here: processing data is a counter raising
                m_nCounter++;

                //assign the counter value to the output_sample_data creating an sample for you
                //and write the sample to the sample writer
                *m_pWriter << adtf::streaming::output_sample_data(tmTimeOfTriggering, m_nCounter);
            }
            else
            {
                RETURN_ERROR_DESC(ERR_INVALID_ADDRESS, "Process called with unknown Runner");
            }
            return {};
        }

    private:
        adtf::streaming::ISampleWriter* m_pWriter = nullptr;
        adtf::streaming::IRunner* m_pRunner = nullptr;

        uint64_t m_nCounter = 0;
};

Sample Stream Operation Modes

There are different operation modes intended within current adtf::streaming API design, but only two modes are realized yet. The delivered default Sample Stream can be used within the filter graph by operating in PushRead Mode.

PushRead Mode - Synchronous Data Pipes

With the Streaming API the adtf::streaming::ISampleStreamAccess::PushRead is defined.

While writing data onto a stream the sample stream will have different states:

Sample Stream - write()

Writing samples:

*pSampleWriter << pSample << pSample;

After writing data onto a sample stream the samples will be queued within a writers queue. There is no trigger event yet emitted!

Note: Keep in mind: At least one stream type will be written onto the stream before any kind of data is transmitted.

Sample Stream - flush()

After flushing the sample writer the samples will be queued in all sample reader queues.
There is only a temporary reader queue within the sample stream to lock the content a short time.

pSampleWriter << adtf::streaming::flush;

adtf::streaming::flush

WRITER_TYPE & flush(WRITER_TYPE &oWriter)

Definition streaming_functions.h:22

Flushing the writer queue will temporarly forward the samples to Reader Queues.

Sample Stream Flush 2

pSampleReader1->Run(RUN_PUSH);

pReadQueue1->Read();

Still within the Flush() call, the samples (and stream types) will be read into the sample reader queue of the sample reader 1 by a push event.
A sample reader using the PushRead mode MUST read the samples immediatelly while the push event appears, otherwise the samples are lost for this reader.

Sample Stream Flush 3

pSampleReader2->Run(RUN_PUSH);

pReadQueue2>Read();

The samples (and stream types) will be read into the sample reader queue of the sample reader 2 by a push event.
This is now the end state of the queues after flushing.

It is possible to use many different kinds of sample readers/pin readers (see adtf::filter).
If using the filter implementation you do not need to call that flush separately!

Sample Stream - trigger()

Sample Stream Trigger

Data trigger is forwarded to the output pin:

pSampleWriter << pTrigger;

Data trigger is received on the input pin.

The trigger call is to create a data trigger on the trigger pipe.
Following call sequence:

OutPin_1->Run(RUN_TRIGGER)
Sample_Stream->Run(RUN_TRIGGER)
InPin_1->Run(RUN_TRIGGER)
InPin_2->Run(RUN_TRIGGER)

Remarks: The "old" ADTF 2 cPin::Transmit call is now separated into a cWriter::Write, cWriter::Flush and cWriter::Trigger call!

Asynchronous Mode - Asynchronous Data Pipes

Note: This mode is not yet implemented in ADTF 3!

But so far: there is no Push event.
The reader queues within the Sample Stream (not within the Sample Readers) are used and each sample reader directly reads from there.

Push Mode - Queue Free Data Pipes

Note: Detailed description in progress... stay tuned!

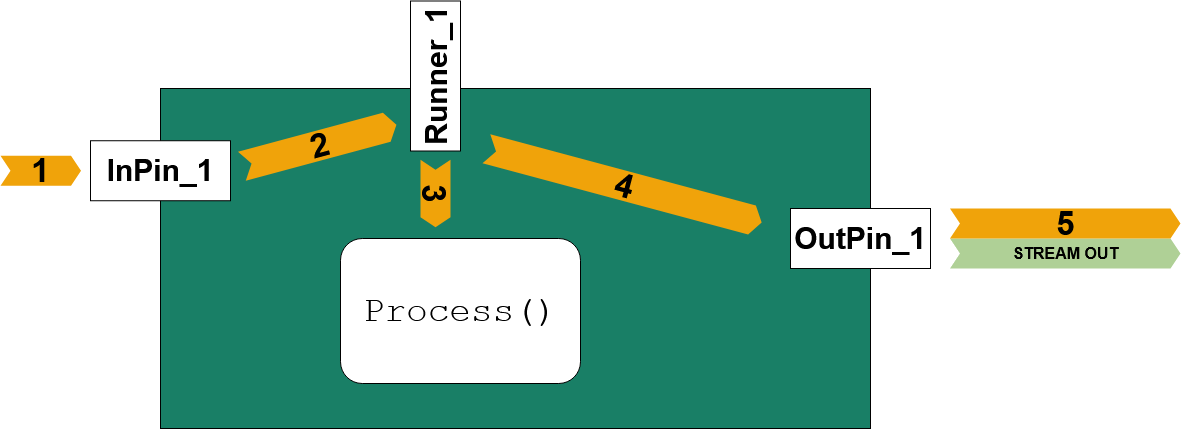

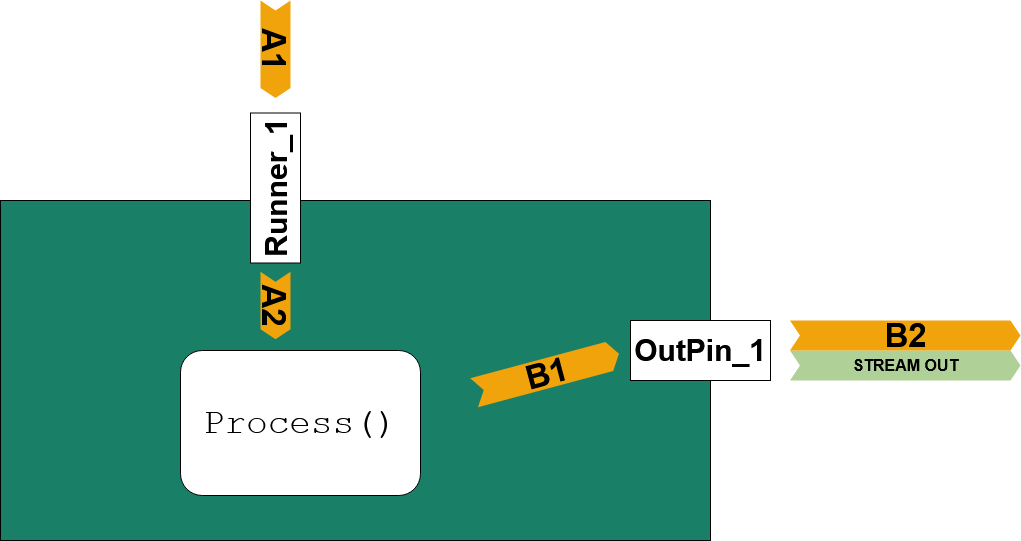

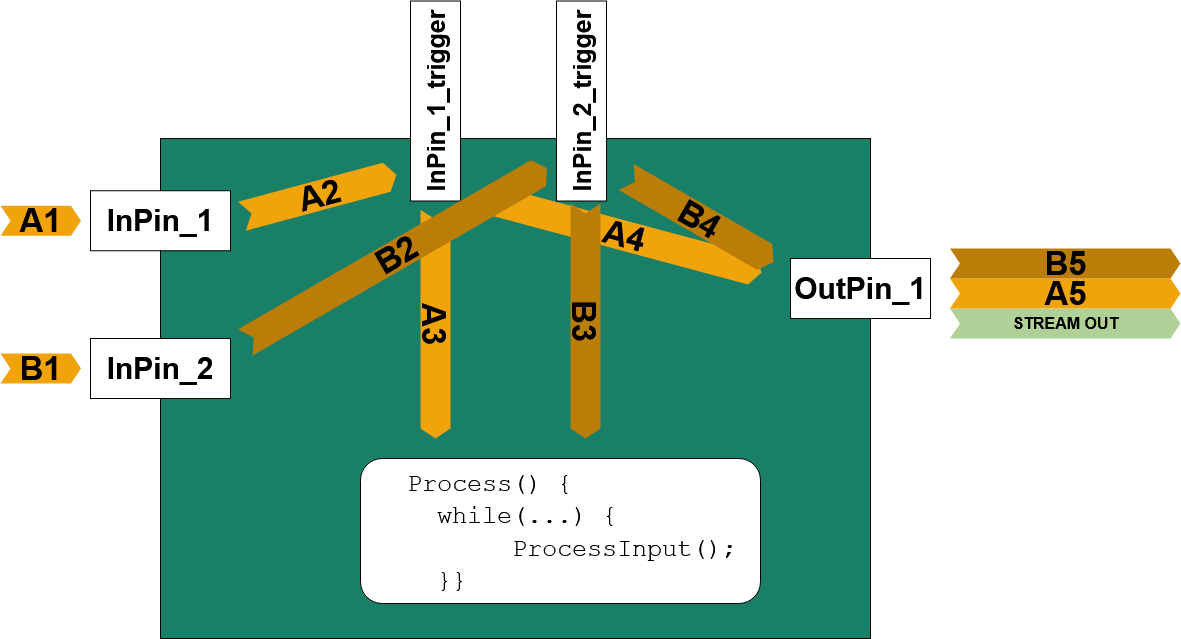

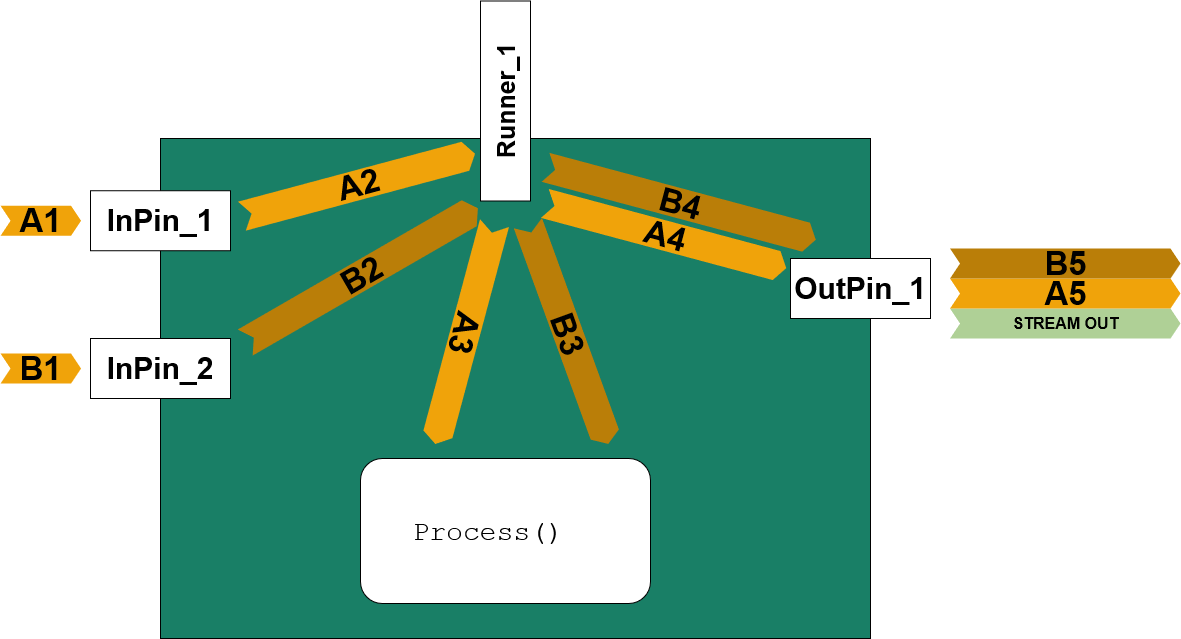

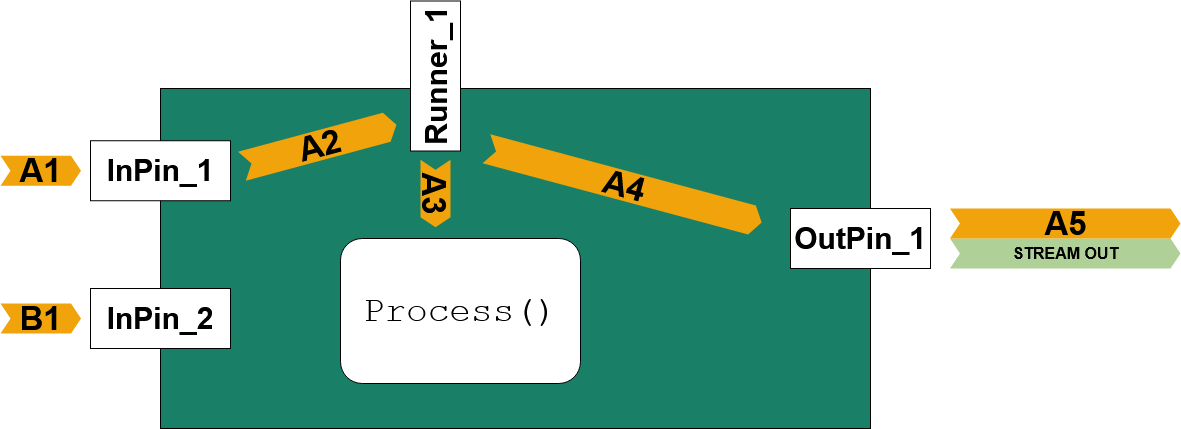

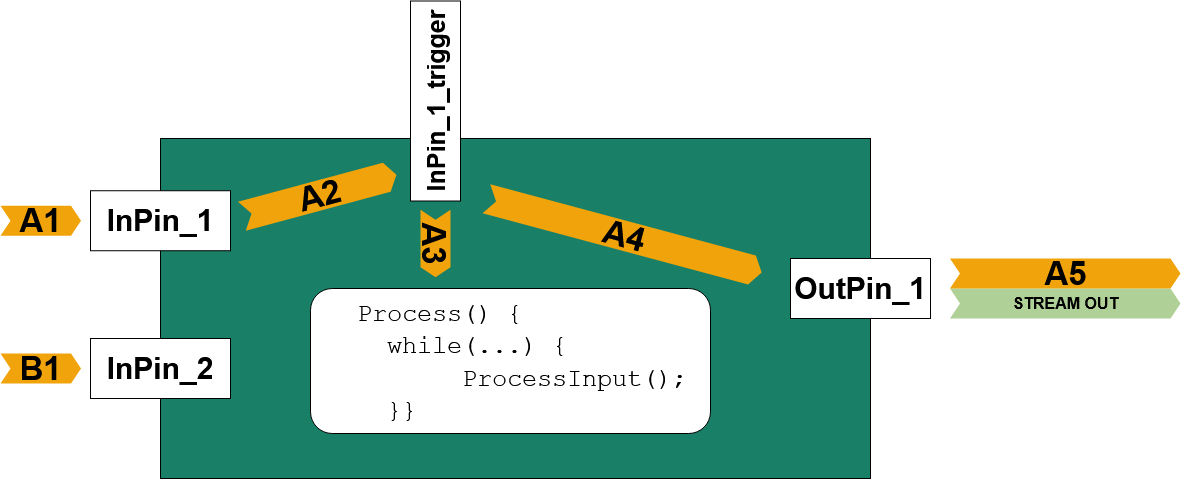

Inner Trigger Pipe of a Filter

Usually, a filter works in a context of a adtf::base::IRunnable::tActivationType RUN_TRIGGER call that is catched by a runner.
This runner is part of the configured trigger pipe within the filter graph.

To describe the internal runtime behaviour of the filter, you should use inner pipes.
Inner pipes are inside the filter and describe how the filter will forward the context of a trigger to its output pins. Otherwise the filter is the end point of a trigger pipe and might be the beginning of another, that is "hidden".

Hidden trigger pipes are trigger paths, that are not discoverable that they belong to another trigger path.
They will appear, if you create manual triggers within a filter implementation.

The adtf::filter SDK will help you to create valid filters with well formed inner pipes.

Have a look at the following code examples, what will happen to the inner pipe of that particular filter or streaming service.

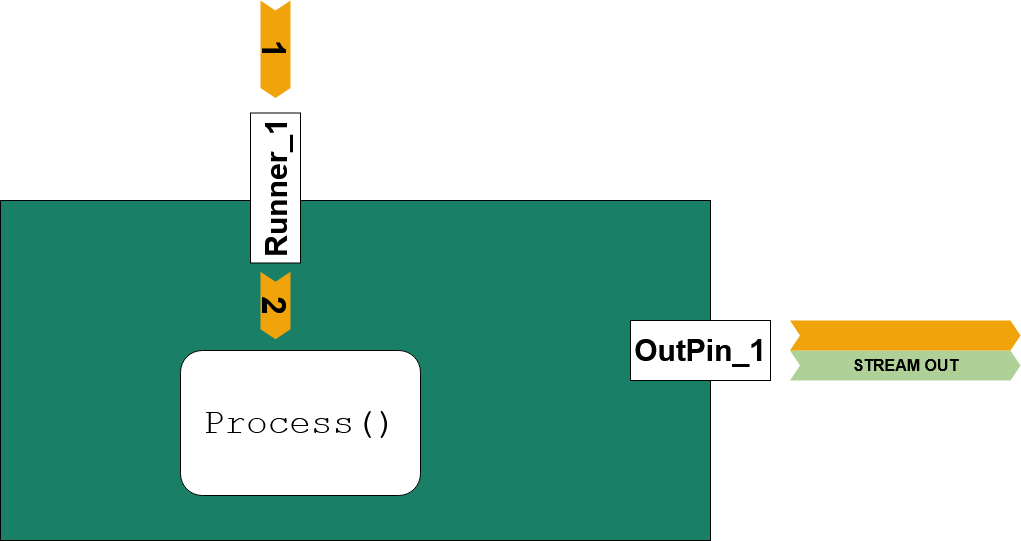

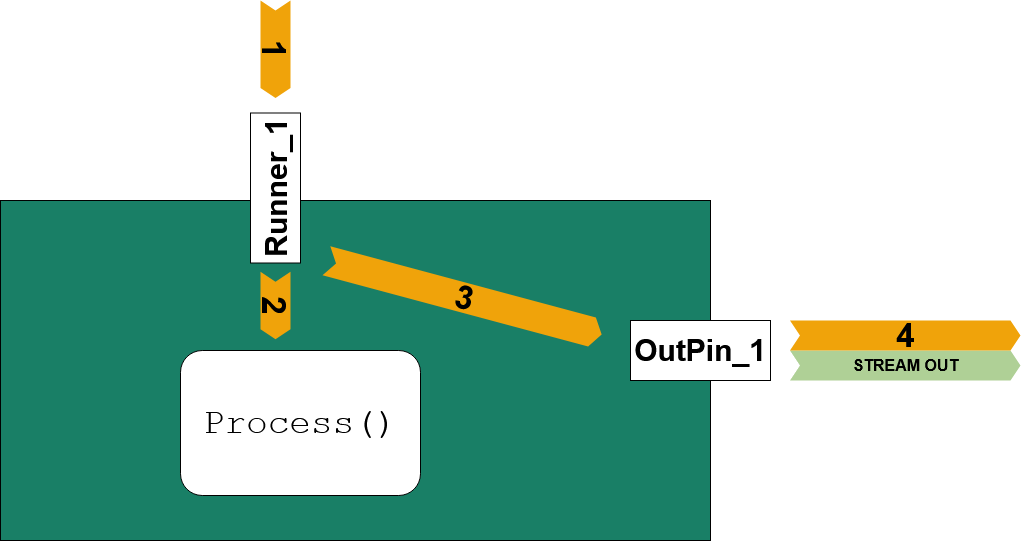

Example 1: Simple Inner Pipe

    cMyFilter1()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;

        //create a writer
        m_pWriter = CreateOutputPin<pin_writer<uint32_t>>("OutPin_1", stream_type_plain<uint32_t>());

        //Create a runner with timer hint
        using namespace std::chrono_literals;
        m_pRunner = CreateRunner("Runner_1", cTimerTriggerHint(100ms));
    }

    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
                    adtf::streaming::IRunner* /*pRunner*/) override
    {
        uint32_t nSampleValue = 123;
        //we write the value into a pin
        m_pWriter->Write(tmTimeOfTriggering, nSampleValue);
        RETURN_NOERROR;
    }

Trigger Call Sequence

(1) Incoming RUN_TRIGGER call on 1 will call and wait for Runner_1
(2) Runner_1 will call and wait for Process()
(3) After (2) returned Runner_1 will call and wait for a RUN_TRIGGER call at OutPin_1
(4) Only after (4) returned, (3) will return, (1) will return

Example 2: No Inner Pipe to the Outputs

    cMyFilter2()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;
        //create a writer
        m_pWriter = CreateOutputPin<pin_writer<uint32_t>>("OutPin_1", stream_type_plain<uint32_t>());

        //Create a runner with timer hint
        //BUT the Runner will NOT formward the Trigger to the Out Pins!
        using namespace std::chrono_literals;
        m_pRunner = CreateRunner("Runner_1", cTimerTriggerHint(100ms), false);
    }

    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
        adtf::streaming::IRunner* /*pRunner*/) override
    {
        uint32_t nSampleValue = 123;
        //we write the value
        m_pWriter->Write(tmTimeOfTriggering, nSampleValue);
        RETURN_NOERROR;
    }

Trigger Call Sequence

Incoming Trigger on (1) will call and wait on Runner_1
Runner_1 will call and wait on (2) Process()
After (2) returned (1) returns

Remarks: There is NO trigger forwarded within this filter to the second trigger pipe on OutPin_1.
It will NOT flush and NOT trigger the sample writer.

Example 3: Inner Pipe and second Hidden Trigger Pipe

    cMyFilter3()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;
        //create a writer
        m_pWriter = CreateOutputPin<pin_writer<uint32_t>>("OutPin_1", stream_type_plain<uint32_t>());

        //Create a runner with timer hint
        //BUT the Runner will NOT formward the Trigger to the Out Pins!
        using namespace std::chrono_literals;
        m_pRunner = CreateRunner("Runner_1", cTimerTriggerHint(100ms), false);
    }

    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
        adtf::streaming::IRunner* /*pRunner*/) override
    {
        using namespace adtf::streaming;
        uint32_t nSampleValue = 123;
        //we write the value, flushes and triggers
        m_pWriter->Write(tmTimeOfTriggering, nSampleValue);
        *m_pWriter << flush << trigger;
        RETURN_NOERROR;
    }

Trigger Call Sequence

(A1) Incoming Trigger will call and wait for Runner_1
(A2) Runner_1 will call and wait for Process()

Remarks: (A2) will use a manual trigger and so it triggers a second hidden trigger pipe (B1) on OutPin_1 and wait until (B2) returns!
This is not really wrong, but this hidden dependency is difficult to maintain.
Additionally you must document that behaviour to the users!

Example 4: Inner Pipe with Data Trigger

    cMyFilter4()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;
        //create a writer
        m_pWriter  = CreateOutputPin<pin_writer<uint32_t>>("OutPin_1", stream_type_plain<uint32_t>());
        //create a reader (but with no default data trigger, but with a trigger forward to the output
        m_pReader1 = CreateInputPin("InPin_1", stream_type_plain<uint32_t>(), false, true);

        //Create a runner with data trigger on "InPin_1"
        m_pRunner = CreateRunner("Runner_1", cDataTriggerHint("InPin_1"), true);
    }

    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
        adtf::streaming::IRunner* /*pRunner*/) override
    {
        using namespace adtf::streaming;
        adtf::ucom::object_ptr<const ISample> pSample;

        //read until the end of all queued sample
        while (IS_OK(m_pReader1->GetNextSample(pSample)))
        {
            uint32_t nSampleValue = sample_data<uint32_t>(pSample);
            m_pWriter->Write(get_sample_time(pSample), nSampleValue);
        }
        RETURN_NOERROR;
    }

Trigger Call Sequence

(1) Incoming Data Trigger on InPin_1 will call and wait for Runner_1 on (2)
(3) Runner_1 will call and wait for Process()
(4) After (3) returned Runner_1 will call and wait for a RUN_TRIGGER call at OutPin_1
(5) Only after (5) returned, (4) will return, (2) will return and last (1) will return

Example 5: Inner Pipe with only 1 Data Trigger catched

    cMyFilter5()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;
        //create a writer
        m_pWriter = CreateOutputPin<pin_writer<uint32_t>>("OutPin_1", stream_type_plain<uint32_t>());
        //create a reader (but with no default data trigger, but with a trigger forward to the output)
        m_pReader1 = CreateInputPin("InPin_1", stream_type_plain<uint32_t>(), false, true);

        //create a second reader (but with no default data trigger and with no trigger forward)
        m_pReader2 = CreateInputPin("InPin_2", stream_type_plain<uint32_t>(), false, false);

        //Create a runner with data trigger hint on "InPin_1"
        m_pRunner = CreateRunner("Runner_1", cDataTriggerHint("InPin_1"), true);
    }

    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
        adtf::streaming::IRunner* /*pRunner*/) override
    {
        using namespace adtf::streaming;
        adtf::ucom::object_ptr<const ISample> oLastSample1;
        adtf::ucom::object_ptr<const ISample> oLastSample2;

        //read all until last sample
        RETURN_IF_FAILED(m_pReader1->GetLastSample(oLastSample1));
        RETURN_IF_FAILED(m_pReader2->GetLastSample(oLastSample2));

        //calculate
        uint32_t nSampleValue = sample_data<uint32_t>(oLastSample1) + sample_data<uint32_t>(oLastSample2);
        m_pWriter->Write(tmTimeOfTriggering, nSampleValue);

        RETURN_NOERROR;
    }

Trigger Call Sequence

(A1) Incoming Data Trigger on InPin_1 will call and wait for Runner_1 on (A2)
(A3) Runner_1 will call and wait for Process()
(A4) After (A3) returned Runner_1 will call and wait for a RUN_TRIGGER call at OutPin_1
(A5) Only after (A5) returned, (A4) will return, (A2) will return and last (A1) will return
(B1) The second incoming trigger pipe immediatelly returns, the pipe ends here!

Example 6: Inner Pipe using ProcessInput()

    cMyFilter6()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;
        //create a writer
        m_pWriter = CreateOutputPin<pin_writer<uint32_t>>("OutPin_1", stream_type_plain<uint32_t>());
        //create a reader (and add a runner for that, and forward the trigger)
        m_pReader1 = CreateInputPin("InPin_1", stream_type_plain<uint32_t>(), true, true);

        //create a second reader (but with no default data trigger and no trigger forward to the output)
        m_pReader2 = CreateInputPin("InPin_2", stream_type_plain<uint32_t>(), false, false);
    }

    tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
        const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
    {
        //we work only in context of "InPin_1" triggers
        using namespace adtf::streaming;
        if (pSample.Get())
        {
            adtf::ucom::object_ptr<const ISample> oLastSample2;
            RETURN_IF_FAILED(m_pReader2->GetLastSample(oLastSample2));
            //calculate
            uint32_t nSampleValue = sample_data<uint32_t>(pSample) + sample_data<uint32_t>(oLastSample2);
            m_pWriter->Write(get_sample_time(pSample), nSampleValue);
        }
        else
        {
            RETURN_ERROR(ERR_INVALID_ADDRESS);
        }

        RETURN_NOERROR;
    }

Trigger Call Sequence

(A1) Incoming Data Trigger on InPin_1 will call and wait for InPin_1_trigger on (A2)
(A3) InPin_1_trigger will call and wait for Process()
(A4) after (A3) returned Runner_1 will call and wait for a RUN_TRIGGER call at OutPin_1
(A5) only after (A5) returned, (A4) will return, (A2) will return and last (A1) will return
(B1) The second incoming trigger pipe immediatelly returns, the pipe ends here!

Example 7: Inner Pipe using ProcessInput and 2 Data Triggers

    cMyFilter7()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;
        //create a writer
        m_pWriter = CreateOutputPin<pin_writer<uint32_t>>("OutPin_1", stream_type_plain<uint32_t>());
        //create a reader (but with no default data trigger, but with a trigger forward to the output
        m_pReader1 = CreateInputPin("InPin_1", stream_type_plain<uint32_t>(), true, true);

        //create a second reader (but with no default data trigger, but with a trigger forward to the output
        m_pReader2 = CreateInputPin("InPin_2", stream_type_plain<uint32_t>(), true, true);
    }

    tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
        const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
    {
        //we work only in context of "InPin_1" and "InPin_2" triggers
        using namespace adtf::streaming;
        if (pSample.Get())
        {
            adtf::ucom::object_ptr<const ISample> oLastOtherSample;
            if (pReader == m_pReader1)
            {
                RETURN_IF_FAILED(m_pReader2->GetLastSample(oLastOtherSample));
                uint32_t nSampleValue = sample_data<uint32_t>(pSample) + sample_data<uint32_t>(oLastOtherSample);
                m_pWriter->Write(get_sample_time(pSample), nSampleValue);
            }
            else if (pReader == m_pReader2)
            {
                RETURN_IF_FAILED(m_pReader1->GetLastSample(oLastOtherSample));
                uint32_t nSampleValue = sample_data<uint32_t>(pSample) + sample_data<uint32_t>(oLastOtherSample);
                m_pWriter->Write(get_sample_time(pSample), nSampleValue);
            }
            else
            {
                RETURN_ERROR(ERR_INVALID_ADDRESS);
            }
        }
        else
        {
            RETURN_ERROR(ERR_INVALID_ADDRESS);
        }

        RETURN_NOERROR;
    }

Trigger Call Sequence on A

(A1) Incoming Data Trigger on InPin_1 will call and wait for InPin_1_trigger on (A2)
(A3) InPin_1_trigger will call and wait for Process() and this the ProcessInput()
As long as (B3) is currently working, this pipe is blocked
(A4) After (A3) returned InPin_1_trigger will call and wait for a RUN_TRIGGER call at OutPin_1
(A5) Only after (A5) returned, (A4) will return, (A2) will return and last (A1) will return

Trigger Call Sequence on B

(B1) Incoming data trigger on InPin_2 will call and wait for InPin_2_trigger on (B2)
(B3) InPin_2_trigger will call and wait for Process() and this the ProcessInput()
As long as (A3) is currently working, this pipe is blocked
(B4) After (B3) returned InPin_2_trigger will call and wait for a RUN_TRIGGER call at OutPin_1
(B5) Only after (B5) returned, (B4) will return, (B2) will return and last (B1) will return

Example 8: Inner Pipe with 1 Runner and 2 Data Triggers

    cMyFilter8()
    {
        using namespace adtf::filter;
        using namespace adtf::streaming;
        //create a writer
        m_pWriter = CreateOutputPin<pin_writer<tUInt32>>("OutPin_1", stream_type_plain<tUInt32>());
        //create a reader (but with no default data trigger, and no forward to the output
        m_pReader1 = CreateInputPin("InPin_1", stream_type_plain<tUInt32>(), false, false);
        //create a second reader (with also no default data trigger, and no forward to the output
        m_pReader2 = CreateInputPin("InPin_2", stream_type_plain<tUInt32>(), false, false);

        //Create a runner with a vector of data triggers on "InPin_1" and "InPin_2"
        m_pRunner = CreateRunner("Runner_1", cDataTriggerHint({"InPin_1", "InPin_2"}), true);
    }

    tResult Process(adtf::base::tNanoSeconds tmTimeOfTriggering,
                    adtf::streaming::IRunner* /*pRunner*/) override
    {
        using namespace adtf::streaming;
        adtf::ucom::object_ptr<const ISample> pSample;

        //read until the end of all queued sample on the first reader
        while (IS_OK(m_pReader1->GetNextSample(pSample)))
        {
            tUInt32 nSampleValue = sample_data<tUInt32>(pSample);
            m_pWriter->Write(get_sample_time(pSample), nSampleValue);
        }
        //read until the end of all queued sample on the second reader
        while (IS_OK(m_pReader2->GetNextSample(pSample)))
        {
            tUInt32 nSampleValue = sample_data<tUInt32>(pSample);
            m_pWriter->Write(get_sample_time(pSample), nSampleValue);
        }
        //if this returns the trigger will be forwarded to the output trigger
        RETURN_NOERROR;
    }

Trigger Call Sequence on A

(A1) Incoming Data Trigger on InPin_1 will call and wait for Runner_1 (A2) (without a InPin_1_trigger call in between)
(A3) Runner_1 will call and wait for Process() to return
By using CreateRunner() the filters Process() call is automatically synchronized against (B3) with a mutex
After (A3) returned (A4) and (A5) can be performed
(A5) Only after (A5) returned, (A4) will return, (A2) will return and last (A1) will return

Trigger Call Sequence on B

(B1) Incoming data trigger on InPin_2 will also directly call and wait on Runner_1 on (B2)
(B3) Runner_1 will call and wait for Process()
(B3) Is synchronized and protected against parallel (A3) call.
(B4) Is called after (B3) returned from Process() will call and wait for a RUN_TRIGGER call at OutPin_1
(B5) Only after (B5) returned, (B4) will return, (B2) will return and last (B1) will return

ManualTrigger call

It is possible to call ManualTrigger() after writing samples and stream types onto the sample writer - but you should prevent that!

The reasons for this is:

Each manual trigger call might be the beginning of a new trigger pipe within the filter graph!
Each manual trigger may double or at least raise the amount of trigger calls in the system, if there are already inner pipes configured!

But the ManualTrigger() must be called by a streaming source that is mostly the beginning of trigger pipe with data triggers.

The design purpose for a good filter and so a good filter graph is, to prevent the ManualTrigger() call.
Only filters with a well formed inner pipe are reconfigurable in their runtime behaviour.

Overview of Writing and Reading Data

The following chapters show how to write and read different kind of data types.

Arithmetic data

Supported data types

uint8_t, int8_t, uint16_t, int16_t, uint32_t, int32_t, int64_t, float, double

Recommended stream type to use:

Use the adtf::streaming::stream_type_plain as instance of adtf/plaintype for single small arithmetic data.

Output

Describe the data with adtf::streaming::stream_type_plain

using namespace adtf::streaming; // to use stream_type_plain<T>
using namespace adtf::filter;    // to use pin_writer<T>

// create the adtf::filter::pin_writer<uint8_t>* m_pWriter_1 instance
// by using stream_type_plain<T> generator template
m_pWriter_1 = CreateOutputPin<pin_writer<uint8_t>>("out_plain_1", stream_type_plain<uint8_t>());

// create a adtf::streaming::ISampleWriter* m_pWriter_2 instance
// by using stream_type_plain<T> generator template
m_pWriter_2 = CreateOutputPin("out_plain_2", stream_type_plain<uint8_t>());

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_plains", cTimerTriggerHint(100));


Write samples

Write the data with the help of operator<< or adtf::streaming::output_sample_data

tResult Process(adtf::base::tNanoSeconds tmTrigger, adtf::streaming::IRunner* pRunner) override
{
    using namespace adtf::streaming;

    if (pRunner == m_pRunner)
    {
        uint8_t nValue = 42;
        // for pin_writer<T>
        // write the value into a new sample with time of trigger
        RETURN_IF_FAILED(m_pWriter_1->Write(tmTrigger, nValue));

        using namespace adtf::streaming; // to use output_sample_data<T>
        // for ISampleWriter
        // write the sample by creating an output_sample_data with time of trigger
        *m_pWriter_2 << output_sample_data(tmTrigger, nValue);
    }
    RETURN_NOERROR;
}

Input

Describe the expected input with adtf::streaming::stream_type_plain

using namespace adtf::streaming; // to use stream_type_plain<T>

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
// by using stream_type_plain<T> generator template
m_pReader_1 = CreateInputPin("in_plain_1", stream_type_plain<uint8_t>());

// create the adtf::streaming::ISampleReader* m_pReader_2 instance
// by using stream_type_plain<T> generator template
m_pReader_2 = CreateInputPin("in_plain_2", stream_type_plain<uint8_t>());


Read samples

Read the data with the help of adtf::streaming::sample_data

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    using namespace adtf::streaming; // to use sample_data<T> for the incoming sample
    if (pReader == m_pReader_1)
    {
        // use the sample_data<T> template to access the samples content
        sample_data<uint8_t> oSampleData(pSample);

        // i.e. access the value with operator*
        uint8_t nValue = *oSampleData;
        // i.e. access the value with GetData()
        nValue = oSampleData.GetData();

        // log the value
        LOG_INFO("Value is %d", int(nValue));
    }
    // ... do the same for m_pReader_2

    RETURN_NOERROR;
}

Array of arithmetic data

Supported data types

std::array<T, N>, where T is: uint8_t, int8_t, uint16_t, int16_t, uint32_t, int32_t, int64_t, float, double

T[N], where T is: uint8_t, int8_t, uint16_t, int16_t, uint32_t, int32_t, int64_t, float, double

Recommended stream type to use

Use adtf::streaming::stream_type_plain as instance of adtf/plaintype for arrays of arithmetic data.

Output for std::array<T, N>

Describe the data with adtf::streaming::stream_type_plain

using namespace adtf::streaming; // to use stream_type_plain<T>
using namespace adtf::filter; // to use pin_writer<T>

// create the pin_writer<std::array<uint8_t, 4>>* m_pWriter_1 instance
// by using stream_type_plain<T> generator template
m_pWriter_1 = CreateOutputPin<pin_writer<std::array<uint8_t, 4>>>("out_plain_std_array_1",
                                                                  stream_type_plain<std::array<uint8_t, 4>>());

// create the adtf::streaming::ISampleWriter* m_pWriter_2 instance
// by using using stream_type_plain<T> generator template
m_pWriter_2 = CreateOutputPin("out_plain_std_array_2", stream_type_plain<std::array<uint8_t, 4>>());

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_std_arrays", cTimerTriggerHint(100));


Write samples std::array<T, N>

Write the data with the help of the pin_writer<T>::Write method or adtf::streaming::output_sample_data

tResult Process(adtf::base::tNanoSeconds tmTigger, adtf::streaming::IRunner* pRunner) override
{
    if (pRunner == m_pRunner)
    {
        std::array<uint8_t, 4> aStdArrayValues = {1, 2, 3, 4};
        // for pin_writer<T>
        // write the value into a new sample with time of trigger
        RETURN_IF_FAILED(m_pWriter_1->Write(tmTigger, aStdArrayValues));

        using namespace adtf::streaming; // to use output_sample_data<T>
        // for ISampleWriter
        // writes the sample by creating output_sample_data with time of trigger
        *m_pWriter_2 << output_sample_data(tmTigger, aStdArrayValues);
    }
    RETURN_NOERROR;
}

Input std::array<T, N>

Describe the expected input with adtf::streaming::stream_type_plain

using namespace adtf::streaming; // to use stream_type_plain<T>

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
// by using stream_type_plain<T> generator template
m_pReader_1 = CreateInputPin("in_plain_std_array_1", stream_type_plain<std::array<uint8_t, 4>>());

// create the adtf::streaming::ISampleReader* m_pReader_2 instance
// by using stream_type_plain<T> generator template
m_pReader_2 = CreateInputPin("in_plain_std_array_2", stream_type_plain<std::array<uint8_t, 4>>());


Read samples std::array<T, N>

Read the data with the help of adtf::streaming::sample_data

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    using namespace adtf::streaming; // to use sample_data<T> for the incoming sample

    if (pReader == m_pReader_1)
    {
        // use the sample_data<T> template to access the samples content of the std::array
        sample_data<std::array<uint8_t, 4>> oSampleDataStdArray(pSample);

        // i.e. access the value with operator*
        std::array<uint8_t, 4> aStdArrayValues = *oSampleDataStdArray;
        // i.e. access the value with GetData()
        aStdArrayValues = oSampleDataStdArray.GetData();
    }
    // ... do the same for m_pReader_2

    RETURN_NOERROR;
}

Output for T[N]

Describe the data with adtf::streaming::stream_type_plain

using namespace adtf::streaming; // to use stream_type_plain<T>
using namespace adtf::filter; // to use pin_writer<T>

// create the adtf::filter::pin_writer<uint8_t[4]>* m_pWriter_1 instance
// by using stream_type_plain<T> template
m_pWriter_1 = CreateOutputPin<pin_writer<uint8_t[4]>>("out_plain_array_1", stream_type_plain<uint8_t[4]>());

// create the adtf::streaming::ISampleWriter* m_pWriter_2 instance
// by using stream_type_plain<T> template
m_pWriter_2 = CreateOutputPin("out_plain_array_2", stream_type_plain<uint8_t[4]>());

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_arrays", cTimerTriggerHint(100));


Write samples for T[N]

Write the data with the help of pin_writer<T>::Write method or adtf::streaming::output_sample_data

tResult Process(adtf::base::tNanoSeconds tmTrigger, adtf::streaming::IRunner* pRunner)
{
    if (pRunner == m_pRunner)
    {
        uint8_t aArrayValues[4] = {1, 2, 3, 4};
        // for pin_writer<T[N]>
        // write the value into a new sample with time of trigger
        RETURN_IF_FAILED(m_pWriter_1->Write(tmTrigger, aArrayValues));

        using namespace adtf::streaming; // to use output_sample_data<T>
        // for ISampleWriter
        // writes the sample by creating output_sample_data with time of trigger
        *m_pWriter_2 << output_sample_data(tmTrigger, aArrayValues);
    }
    RETURN_NOERROR;
}

Input for T[N]

Describe the expected input with adtf::streaming::stream_type_plain

using namespace adtf::streaming; // to use stream_type_plain<T>

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
// i.e. using stream_type_plain<T> generator template
m_pReader_1 = CreateInputPin("in_plain_array_1", stream_type_plain<uint8_t[4]>());

// create the adtf::streaming::ISampleReader* m_pReader_2 instance
// i.e. using stream_type_plain<T> generator template
m_pReader_2 = CreateInputPin("in_plain_array_2", stream_type_plain<uint8_t[4]>());


Read Samples for T[N]

Read the data with the help of adtf::streaming::sample_data

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    using namespace adtf::streaming; // to use sample_data<T> for the incoming sample

    if (pReader == m_pReader_1)
    {
        // use the sample_data<T> template to access the samples content of the std::array
        sample_data<uint8_t[4]> oSampleDataArray(pSample);

        // i.e. access the value with operator*
        for (auto nIndex = 0; nIndex < 4; ++nIndex)
        {
            LOG_INFO("Value[%d]=%d", int(nIndex), int((*oSampleDataArray)[nIndex]));
        }

        // i.e. access the value with GetData()
        for (auto nIndex = 0; nIndex < 4; ++nIndex)
        {
            LOG_INFO("Value[%d]=%d", int(nIndex), int(oSampleDataArray.GetData()[nIndex]));
        }
    }
    // ... do the same for m_pReader_2

    RETURN_NOERROR;
}

Structured data

Supported data types

The conditions to use structured data as content of a sample is:

The data type has to fulfill the condition of std::is_trivially_copyable<T>::value to be true
No pointer types are allowed as member
All members has to fullfill the condition of std::is_trivially_copyable<T>::value to be true

// example structure that is trivially copyable
struct tMyType
{
    int32_t m_nValue1;
    double  m_fValue2;
    bool    m_bArray[2];
};


It is also possible to define a DDL description file and use the generated type by MD Generator Tool.


// this file is generated with MD Generator Tool
#include <my_type.h>

Recommended stream type to use

Use the adtf::mediadescription::stream_type_default as instance of adtf/default for structured data.

Usually, you are allowed to use every kind of your own custom stream meta types to describe the structured data you want to write.
The big advantage of using the adtf::mediadescription::stream_type_default is to describe the content by the help of the Data Definition Language (DDL). See also ADTF and DDL, how to create a description for your structured data.

Output

Describe the data with adtf::mediadescription::stream_type_default

using namespace adtf::mediadescription; // to use stream_type_default<T>
using namespace adtf::filter;           // to use pin_writer<T>

// i.e. we create a structure ddl description with the help of "type reflection"
auto oDescriptionForMyType = structure<tMyType>("tMyType")
                                  .Add("m_nValue1", &tMyType::m_nValue1)
                                  .Add("m_fValue2", &tMyType::m_fValue2)
                                  .Add("m_bArray", &tMyType::m_bArray);

// create the adtf::filter::pin_writer<tMyType>* m_pWriter_1 instance
// i.e. by using stream_type_default<> generator template
m_pWriter_1 = CreateOutputPin<pin_writer<tMyType>>("out_default_1",
                                                   stream_type_default<>(oDescriptionForMyType));

// create the adtf::streaming::ISampleWriter* m_pWriter_2 instance
// i.e. by using CreateOutputPin overload take structure<> as parameter
m_pWriter_2 = CreateOutputPin("out_default_2", oDescriptionForMyType);

// create the adtf::streaming::ISampleWriter* m_pWriter_3 instance
// i.e. by using stream_type_default<T> creator function
// to use this method you MUST create <my_type.h> with MD Generator Tool to use tMyTypeWithMDGen
m_pWriter_3 = CreateOutputPin("out_default_2", stream_type_default<tMyTypeWithMDGen>());

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_defaults", cTimerTriggerHint(100));


Write Samples

Write the data with the help of pin_writer<T>::Write method or adtf::streaming::output_sample_data

tResult Process(adtf::base::tNanoSeconds tmTrigger, adtf::streaming::IRunner* pRunner) override
{
    if (pRunner == m_pRunner)
    {
        tMyType sValues = {1, 2.0, {true, false}};

        // for pin_writer<T>
        // Write the value into a new sample with time of trigger
        RETURN_IF_FAILED(m_pWriter_1->Write(tmTrigger, sValues));

        using namespace adtf::streaming; // to use output_sample_data<T>
        // for ISampleWriter
        // Write the value by creating an output_sample_data<T> with time of trigger
        *m_pWriter_2 << output_sample_data(tmTrigger, sValues);

        // for ISampleWriter with MD Generator Tool generated description <my_type.h>
        tMyTypeWithMDGen sValuesWithMDGen = {1, 2.0, {true, false}};
        // Write the value by creating an output_sample_data<T> with time of trigger
        *m_pWriter_3 << output_sample_data(tmTrigger, sValuesWithMDGen);
    }

    RETURN_NOERROR;
}

Input

Describe the expected input with adtf::mediadescription::stream_type_default

using namespace adtf::mediadescription; // to use stream_type_default<T>

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
// i.e. using stream_type_default<T> generator template
m_pReader_1 = CreateInputPin("in_default_1", stream_type_default<>(oDescriptionForMyType));

// create the adtf::streaming::ISampleReader* m_pReader_2 instance
// i.e. using CreateInputPin overload take structure<> as parameter
m_pReader_2 = CreateInputPin("in_default_2", oDescriptionForMyType);

// create the adtf::streaming::ISampleReader* m_pReader_3 instance
// i.e. by using stream_type_default<T> creator function
// to use this method you MUST create <my_type.h> with MD Generator Tool to use tMyTypeWithMDGen
m_pReader_3 = CreateInputPin("in_default_3", stream_type_default<tMyTypeWithMDGen>());


Read Samples

Read the data with the help of adtf::streaming::sample_data

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    using namespace adtf::streaming; // to use sample_data<T> for the incoming sample

    if (pReader == m_pReader_1)
    {
        // use the sample_data<T> template to access the samples content
        sample_data<tMyType> oSampleData(pSample);

        // i.e. access the values with operator*
        tMyType sValuesCopy = *oSampleData;
        // i.e. access the value with GetData()
        sValuesCopy = oSampleData.GetData();
    }
    // ... do the same for m_pReader_2
    // ...
    else if (pReader == m_pReader_3)
    {
        // use the sample_data<T> template to access the samples content
        sample_data<tMyTypeWithMDGen> oSampleData(pSample);

        // i.e. access the values with operator*
        tMyTypeWithMDGen sValuesCopy = *oSampleData;
        // i.e. access the value with GetData()
        sValuesCopy = oSampleData.GetData();
    }


    RETURN_NOERROR;
}

Array of structured data

Supported data types

The conditions to use an array of structured data as content of a sample is:

The data type has to fulfill the condition of std::is_trivially_copyable<T>::value to be true
No pointer types are allowed as member
All members has to fullfill the condition of std::is_trivially_copyable<T>::value to be true

// example structure that is trivially copyable
struct tMyType
{
    int32_t m_nValue1;
    double  m_fValue2;
    bool    m_bArray[2];
};


std::array<T, N>, where T is a supported structured data type (i.e. std::array<tMyType, 4> aValues;)

T[N], where T is a supported structured data type (i.e. tMyType aValues[4];)

It is also possible to define a DDL description file and use the generated type by MD Generator Tool.


// this file is generated with MD Generator Tool
#include <my_type.h>

Recommended stream type to use

Use the adtf::mediadescription::stream_type_default_array as instance of adtf/default for arrays of structured data.

You are allowed to use every kind of your own custom stream meta types to describe the structured data you want to write. The advantage of using the adtf::mediadescription::stream_type_default_array is to describe the content by the help of the Data Definition Language (DDL). See also ADTF and DDL how to create a description for your structured data. It will additionally handle the creation of the array type within description.

Output

Describe the data with adtf::mediadescription::stream_type_default_array

using namespace adtf::mediadescription; // to use stream_type_default_array<T>
using namespace adtf::filter; // to use pin_writer<T>

// i.e. we create a structure ddl description with the help of "type reflection"
auto oDescriptionForMyType = structure<tMyType>("tMyType")
                                 .Add("m_nValue1", &tMyType::m_nValue1)
                                 .Add("m_fValue2", &tMyType::m_fValue2)
                                 .Add("m_bArray", &tMyType::m_bArray);

// create the adtf::streaming::ISampleWriter* m_pWriter_1 instance
// by using stream_type_default_array<> generator template
m_pWriter_1 = CreateOutputPin("out_default_array_1",
                              stream_type_default_array<>(oDescriptionForMyType, 4));

// create the pin_writer<tMyType[4]>* m_pWriter_2 instance
// by using stream_type_default_array<> generator template
m_pWriter_2 = CreateOutputPin<pin_writer<tMyType[4]>>("out_default_array_2",
                              stream_type_default_array<>(oDescriptionForMyType, 4));

// create the adtf::streaming::ISampleWriter* m_pWriter_3 instance
// by using stream_type_default_array<T> generator template
// to use this method you MUST create <my_type.h> with MD Generator Tool to use type tMyTypeWithMDGen
m_pWriter_3 = CreateOutputPin("out_default_array_3", stream_type_default_array<tMyTypeWithMDGen[4]>());

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_default_arrays", cTimerTriggerHint(100));


Write samples

Write the data with the help of pin_writer<T>::Write method or adtf::streaming::output_sample_data

tResult Process(adtf::base::tNanoSeconds tmTrigger, adtf::streaming::IRunner* pRunner)
{
    if (pRunner == m_pRunner)
    {
        std::array<tMyType, 4> aStdArray = {tMyType{1, 2.0, {true, false}}, tMyType{2, 3.0, {false, false}},
                                            tMyType{3, 4.0, {true, true}}, tMyType{4, 5.0, {false, true}}};

        using namespace adtf::streaming; // to use output_sample_data<T>
        // for ISampleWriter*
        // write the value by creating output_sample_data<T> and set the time of trigger
        *m_pWriter_1 << output_sample_data(tmTrigger, aStdArray);

        // for pin_writer<T[N]>
        tMyType aValues[4] = {tMyType{1, 2.0, {true, false}}, tMyType{2, 3.0, {false, false}},
                              tMyType{3, 4.0, {true, true}}, tMyType{4, 5.0, {false, true}}};
        // use output_sample_data<T[N]>
        *m_pWriter_2 << output_sample_data(tmTrigger, aValues);
        // or use pin_writer<T>::Write method
        RETURN_IF_FAILED(m_pWriter_2->Write(tmTrigger, aValues));

        // for ISampleWriter*
        // write the value by creating output_sample_data<T> and set the time of trigger
        tMyTypeWithMDGen aValuesMDGen[4] = {tMyTypeWithMDGen{1, 2.0, {true, false}},
                                            tMyTypeWithMDGen{2, 3.0, {false, false}},
                                            tMyTypeWithMDGen{3, 4.0, {true, true}},
                                            tMyTypeWithMDGen{4, 5.0, {false, true}}};
        // use output_sample_data<T[N]>
        *m_pWriter_3 << output_sample_data(tmTrigger, aValuesMDGen);
    }
    RETURN_NOERROR;
}

Input

Describe the expected input with adtf::mediadescription::stream_type_default_array

using namespace adtf::mediadescription; // to use stream_type_default<T>

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
// by using stream_type_default_array<> generator template
m_pReader_1 = CreateInputPin("in_default_array_1",
                             stream_type_default_array<>(oDescriptionForMyType, 4));


// create the adtf::streaming::ISampleReader* m_pReader_2 instance
// by using stream_type_default_array<> generator template
m_pReader_2 = CreateInputPin("in_default_array_2",
                             stream_type_default_array<>(oDescriptionForMyType, 4));

// create the adtf::streaming::ISampleReader* m_pReader_3 instance
// by using stream_type_default_array<T> generator template
// to use this method you MUST create <my_type.h> with MD Generator Tool to use type tMyTypeWithMDGen
m_pReader_3 = CreateInputPin("in_default_array_2",
                             stream_type_default_array<tMyTypeWithMDGen[4]>());


Read samples

Read the data with the help of adtf::streaming::sample_data

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    using namespace adtf::streaming; // to use sample_data<T> for the incoming sample
    if (pReader == m_pReader_1)
    {
        // use the sample_data<T> template to access the samples content
        sample_data<std::array<tMyType, 4>> oSampleStdArrayData(pSample);

        // i.e. access the values with operator*
        std::array<tMyType, 4> aStdArrayCopy = *oSampleStdArrayData;
        // i.e. access the value with GetData()
        aStdArrayCopy = oSampleStdArrayData.GetData();
    }
    else if (pReader == m_pReader_2)
    {
        // for T[N]
        //   use the sample_data<T> template to access the samples content
        sample_data<tMyType[4]> oSampleArrayData(pSample);

        // i.e. access the values with operator*
        tMyType aValuesCopy[4];
        for (auto nIdx = 0; nIdx < 4; ++nIdx)
        {
            aValuesCopy[nIdx] = (*oSampleArrayData)[nIdx];
        }

        // i.e. access the value with GetData()
        for (auto nIdx = 0; nIdx < 4; ++nIdx)
        {
            aValuesCopy[nIdx] = oSampleArrayData.GetData()[nIdx];
        }
    }
    else if (pReader == m_pReader_3)
    {
        // for T[N]
        // use the sample_data<T> template to access the samples content
        sample_data<tMyTypeWithMDGen[4]> oSampleArrayData(pSample);
        // ...
    }
    RETURN_NOERROR;
}

Video Image data

Supported type

A bitmap array of byte which can be described via adtf::streaming::tStreamImageFormat.

Recommended stream type to use

Use the adtf::streaming::stream_type_image as instance of adtf/image for a sequence of images.

Output

Describe the data with adtf::streaming::stream_type_image

using namespace adtf::streaming; // to use stream_type_image<T>

// use a grey scale image (8bit)
tStreamImageFormat sFormat{stream_image_format::GREYSCALE_8::FormatName, 800, 600, 800 * 600};

// create the adtf::streaming::ISampleWriter* m_pWriter_1 instance
// i.e. by using stream_type_image<T> generator template
m_pWriter_1 = CreateOutputPin("out_video_1", stream_type_image(sFormat));

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_videos", cTimerTriggerHint(100));


Write samples

Write the data with the help of operator<< for the sample

tResult Process(adtf::base::tNanoSeconds tmTrigger, adtf::streaming::IRunner* pRunner) override
{
    using namespace adtf::streaming; // to use alloc_sample, ISample, ISampleBuffer

    adtf::ucom::object_ptr<ISample> pSample;
    // use the current time of trigger for the sample
    RETURN_IF_FAILED(alloc_sample(pSample, tmTrigger));

    { // MIND: Before transmitting, the buffer must be unlocked!
        adtf::ucom::object_ptr_locked<ISampleBuffer> pSampleBuffer;
        RETURN_IF_FAILED(pSample->WriteLock(pSampleBuffer, 800 * 600)); // create a sample with 800*600*8Bit
        memset(pSampleBuffer->GetPtr(), pSampleBuffer->GetSize(), 0xF0); // this is an example set up a grey image

    } // this closure will unlock the buffer

    // write the sample
    *m_pWriter_1 << pSample;

    RETURN_NOERROR;
}

Input

Describe the expected input with adtf::streaming::stream_type_image

using namespace adtf::streaming; // to use stream_type_image<T>

// accept a grey scale image (8bit)
tStreamImageFormat sFormat{stream_image_format::GREYSCALE_8::FormatName, 800, 600, 800*600};

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
// by using stream_type_image<T> generator template
m_pReader_1 = CreateInputPin("in_video_1", stream_type_image(sFormat));


Read samples

Read the data directly from the sample

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    using namespace adtf::streaming; // to use ISampleBuffer

    if (pReader == m_pReader_1)
    {
        // use the sample buffer to access the content
        adtf::ucom::object_ptr_shared_locked<const ISampleBuffer> pSampleBuffer;
        RETURN_IF_FAILED(pSample->Lock(pSampleBuffer));

        // check if the image is in the right size
        if (pSampleBuffer->GetSize() == 800 * 600)
        {
            const uint8_t* pPixels = static_cast<const uint8_t*>(pSampleBuffer->GetPtr());
            LOG_INFO("The 8Bit greyscale pixel[0] has following value: %d", int(pPixels[0]));
        }
        else
        {
            RETURN_ERROR_DESC(ERR_MEMORY, "The size of the image is not as expected 800*600*8Bit");
        }
    }
    // ... do the same for m_pReader_2

    RETURN_NOERROR;
}

String data

Supported type

std::string, std::u16string

Recommended stream type to use

Use the adtf::streaming::stream_type_string as instance of adtf/string for string data.

Output for std::string

Describe the data with adtf::streaming::stream_type_string

using namespace adtf::streaming; // to use stream_type_string<T>
using namespace adtf::filter;    // to use pin_writer<T>

// create the adtf::filter::pin_writer<std::string>* m_pWriter_1 instance
// by using stream_type_string<T> generator template
m_pWriter_1 = CreateOutputPin<pin_writer<std::string>>("out_string_1",
                                                       stream_type_string<std::string>());

// create the adtf::filter::pin_writer<std::u16string>* m_pWriter_2 instance
// by using stream_type_string<T> generator template
m_pWriter_2 = CreateOutputPin<pin_writer<std::u16string>>("out_string_2",
                                                          stream_type_string<std::u16string>());

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_strings", cTimerTriggerHint(100));


Write samples for std::string

Write the data with the help of operator<<

tResult Process(adtf::base::flash::tNanoSeconds tmTrigger, adtf::streaming::ant::IRunner* pRunner) override
{
    if (pRunner == m_pRunner)
    {
        std::string strStringToTransmit = "This is the output string";
        // for pin_writer<T>
        // write the value into a new sample with current time of trigger
        RETURN_IF_FAILED(m_pWriter_1->Write(tmTrigger, strStringToTransmit));

        std::u16string strU16StringToTransmit = u"This is the output u16string";
        // for pin_writer<T>
        // write the value into a new sample with current time of trigger
        RETURN_IF_FAILED(m_pWriter_2->Write(tmTrigger, strU16StringToTransmit));
    }
    RETURN_NOERROR;
}

Input for std::string

Describe the expected input with adtf::streaming::stream_type_string

using namespace adtf::streaming; // to use stream_type_string<T>

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
// by using stream_type_string<T> generator template
m_pReader_1 = CreateInputPin("in_string_1", stream_type_string<std::string>());

// create the adtf::streaming::ISampleReader* m_pReader_2 instance
// by using stream_type_string<T> generator template
m_pReader_2 = CreateInputPin("in_string_2", stream_type_string<std::u16string>());


Read samples for std::string

Read the data with the help of adtf::streaming::sample_data

Remarks: An instance of sample_data will copy the buffers content of the sample to an instance of std::string

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    using namespace adtf::streaming; // to use sample_data<T> for the incoming sample

    if (pReader == m_pReader_1)
    {
        // use the sample_data<T> template to access the samples content as string
        sample_data<std::string> oSampleData(pSample);

        // i.e. access the values with operator*
        std::string strCopy = *oSampleData;
        // i.e. access the value with GetData()
        strCopy = oSampleData.GetData();
    }
    else if (pReader == m_pReader_2)
    {
        // use the sample_data<T> template to access the samples content as string
        sample_data<std::u16string> oSampleData(pSample);

        // i.e. access the values with operator*
        std::u16string strU16Copy = *oSampleData;
        // i.e. access the value with GetData()
        strU16Copy = oSampleData.GetData();
    }

    RETURN_NOERROR;
}

Dynamic arrays within structured data

Remarks: Please keep in mind, that this type is not supported within any displays by default!

Possible data types

The conditions to use an array of structured data with dynamic content within samples is:

The structured data must be allocated in one whole block of memory.
No pointer types are allowed as member
All members except the flexible array member has to fullfill the condition of std::is_trivially_copyable<T>::value to be true

Remarks: Dynamic memory allocations requires increased attention by the programmer!
Since these conditions has to be met we recommend to use a static array and mark valid and invalid array positions.
Dynamic content is mostly not supported by any ADTF Qt5 standard display.

// example structure that is a dynamic type
// Mind: flexible array members must be always at the end of the structure!
//       using this flexible array members always needs attention by the programmer!
struct tMyTypeDynamic
{
    uint64_t m_nArraySize;
    int32_t m_aDynamicArray[];

    static size_t EvaluateSize(size_t nArraySize)
    {
        return sizeof(struct tMyTypeDynamic) + nArraySize * sizeof(int32_t);
    }
};



Recommended stream type to use

Use the adtf::mediadescription::stream_type_default as instance of adtf/default for dynamic arrays of structured data. The dynamic content can be described via arraysize within the DDL description.

Output

Describe the data with adtf::mediadescription::stream_type_default

using namespace adtf::mediadescription; // to use stream_type_default<T>

// i.e. we need to define the dynamic array in a description
constexpr auto strStructNameForMyTypeDynamic = "tMyTypeDynamic";
constexpr auto strDescriptionForMyTypeDynamic =
    R"(<struct name="tMyTypeDynamic" alignment="8" version="1">
      <element name="m_nArraySize" type="uint64_t" arraysize="1">
          <deserialized alignment="8"/>
          <serialized bytpos="0" byteorder="LE"/>
      </element>
      <element name="m_aDynamicArray" type="int32_t" arraysize="m_nArraySize">
          <deserialized alignment="4"/>
          <serialized bytpos="8" byteorder="LE"/>
      </element>
   </struct>)";

// create the adtf::streaming::ISampleWriter* m_pWriter instance
// by using stream_type_default<> generator template
m_pWriter_1 = CreateOutputPin("out_dynamic_1",
                              stream_type_default<>(strStructNameForMyTypeDynamic, strDescriptionForMyTypeDynamic));

// create the adtf::filter::pin_writer<tMyType>* m_pWriter_2 instance
// by using stream_type_default<> generator template
m_pWriter_2 = CreateOutputPin("out_default_2",
                              stream_type_default<>(strStructNameForMyTypeDynamic, strDescriptionForMyTypeDynamic));

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_dynamics", cTimerTriggerHint(100));


Write samples

Write the data directly within samples memory

tResult Process(adtf::base::tNanoSeconds tmTrigger, adtf::streaming::IRunner* pRunner) override
{
    using namespace adtf::streaming; // to use alloc_sample
    if (pRunner == m_pRunner)
    {
        adtf::ucom::object_ptr<ISample> pSample;
        RETURN_IF_FAILED(alloc_sample(pSample, tmTrigger));

        { // MIND: pSampleBuffer must be unlocked before transmitting the sample!
            adtf::ucom::object_ptr_locked<ISampleBuffer> pSampleBuffer;
            RETURN_IF_FAILED(pSample->WriteLock(pSampleBuffer, tMyTypeDynamic::EvaluateSize(4)));
            tMyTypeDynamic* pMyDynamicArray = static_cast<tMyTypeDynamic*>(pSampleBuffer->GetPtr());
            pMyDynamicArray->m_nArraySize = 4; // this must be the same value as used in WriteLock call!
            for (auto nIdx = 0; nIdx < 4; ++nIdx)
            {
                pMyDynamicArray->m_aDynamicArray[nIdx] = nIdx;
            }
        } // this closure will unlock the pSampleBuffer

        // write the sample
        *m_pWriter_1 << pSample;

        // ... do the same for m_pWriter_2
    }
    RETURN_NOERROR;
}

Input

Describe the expected input with adtf::mediadescription::stream_type_default

using namespace adtf::mediadescription; // to use stream_type_default<T>

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
// by using stream_type_default<> generator template
m_pReader_1 = CreateInputPin("in_default_1",
                             stream_type_default<>(strStructNameForMyTypeDynamic, strDescriptionForMyTypeDynamic));

// create the adtf::streaming::ISampleReader* m_pReader_2 instance
// by using stream_type_default<> generator template
m_pReader_2 = CreateInputPin("in_default_2",
                             stream_type_default<>(strStructNameForMyTypeDynamic, strDescriptionForMyTypeDynamic));


Read samples

Read the data directly from the samples buffer

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    using namespace adtf::streaming; // to acces the sample

    if (pReader == m_pReader_1)
    {
        adtf::ucom::object_ptr_shared_locked<const ISampleBuffer> pSampleBuffer;
        RETURN_IF_FAILED(pSample->Lock(pSampleBuffer));

        const tMyTypeDynamic* pMyArray = static_cast<const tMyTypeDynamic*>(pSampleBuffer->GetPtr());
        // we should check array size and expected sample buffer size
        if (tMyTypeDynamic::EvaluateSize(pMyArray->m_nArraySize) == pSampleBuffer->GetSize())
        {
            // i.e. access the value with GetData()
            LOG_INFO("The current array size is %zu", size_t(pMyArray->m_nArraySize));
        }
        else
        {
            RETURN_ERROR_DESC(ERR_MEMORY, "set dynamic array size and sample size does not fit!");
        }
    }
    //... do the same for m_pReader_2

    RETURN_NOERROR;
}

Custom data

You may define your own stream meta type to describe the data you want to transmit and receive, see also Custom Stream Meta Type.

The differences between the other and the recommended stream types are:

You can define own properties to describe the content.
You are able to implement an own my_custom_stream_meta_type::IsCompatible.
You can hide the content of the samples, because only you know the properties meanings.
As long as you not set the md_struct and md_definition property, you can not use any standard displays within ADTF Qt5

Example definition

struct my_custom_stream_meta_type
{
    // you must define the Metatype name as a variable "MetaTypeName"
    static constexpr const tChar* const MetaTypeName = "cppDev/my_custom_type";

    // this is a property to define a property name which identifies the content by the help of a number
    static constexpr const tChar* const SecretContentID = "secret_content_id";
    static constexpr const tChar* const Version = "version_of_type";

    static void SetProperties(const adtf::ucom::iobject_ptr<adtf::base::IProperties>& pProperties)
    {
        // we set the default values of the stream type
        pProperties->SetProperty(adtf::base::property<uint16_t>(SecretContentID, 0));
        pProperties->SetProperty(adtf::base::property<adtf_util::cString>(Version, "cppDev 2020-1.0"));
    }
};

struct my_custom_stream_type : public adtf::streaming::stream_type<my_custom_stream_meta_type>
{
    my_custom_stream_type()
    {
    }
    my_custom_stream_type(uint16_t nSecretContentNo)
    {
        adtf::ucom::object_ptr<adtf::base::IProperties> pConfig;
        THROW_IF_FAILED(GetConfig(pConfig));
        adtf::base::set_property<uint16_t>(*pConfig, my_custom_stream_meta_type::SecretContentID,
                                           nSecretContentNo);
    }
};

struct tMyCustomData1
{
    uint64_t nValue1;
    int64_t nValue2;
    uint32_t nValue3;
};

struct tMyCustomData2
{
    double nValue1;
    tMyCustomData1 aArrayData[3];
};

Output

Describe the data with your own stream meta type

using namespace adtf::filter;    // to use pin_writer<T>

// create the adtf::filter::pin_writer<std::string>* m_pWriter_1 instance
m_pWriter_1 = CreateOutputPin<pin_writer<tMyCustomData1>>("out_custom_1", my_custom_stream_type(1));

// create the adtf::streaming::ISampleWriter* m_pWriter_2 instance
m_pWriter_2 = CreateOutputPin("out_custom_2", my_custom_stream_type(2));

// create a adtf::streaming::IRunner to process every 100ms
m_pRunner = CreateRunner("write_customs", cTimerTriggerHint(100));


Write samples

Write the samples with the operator<< or adtf::streaming::output_sample_data

tResult Process(adtf::base::tNanoSeconds tmTrigger, adtf::streaming::IRunner* pRunner) override
{
    if (pRunner == m_pRunner)
    {
        // for the pin_writer<tMyCustomData1>
        // write the value into a new sample with time of trigger
        m_pWriter_1->Write(tmTrigger, tMyCustomData1{1, 2, 3});

        // for ISampleWriter*
        // write the sample with the help of output_sample_data
        *m_pWriter_2 << adtf::streaming::output_sample_data(tmTrigger, tMyCustomData2{1.0, {{1, 2, 3}, {}, {}}});
    }
    RETURN_NOERROR;
}

Input

Describe the expected input with your own stream meta type

using namespace adtf::streaming; // to use stream_type_string<T>

// create the adtf::streaming::ISampleReader* m_pReader_1 instance
m_pReader_1 = CreateInputPin("in_custom_1", my_custom_stream_type(1));

// create the adtf::streaming::ISampleReader* m_pReader_2 instance
m_pReader_2 = CreateInputPin("in_custom_2", my_custom_stream_type(2));


Read samples

Read the data with the help of adtf::streaming::sample_data

tResult ProcessInput(adtf::streaming::ISampleReader* pReader,
                     const adtf::ucom::iobject_ptr<const adtf::streaming::ISample>& pSample) override
{
    if (pReader == m_pReader_1)
    {
        using namespace adtf::streaming; // to use sample_data<T> for the incoming sample

        // use the sample_data<T> template to access the samples content
        sample_data<tMyCustomData1> oSampleData(pSample);

        // i.e. access the values with operator*
        tMyCustomData1 sCopyOfCustomData = *oSampleData;
        // i.e. access the value with GetData()
        sCopyOfCustomData = oSampleData.GetData();
    }
    // ... the same for m_pReader_2
    //     and sample_data<tMyCustomData2>

    RETURN_NOERROR;
}

Table of Contents

Introduction

Named Graph Object

Filter

Streaming Service

Streaming Source

Streaming Sink

Active Runner

Sample Stream

Binding Proxy

Filter Graph

Filter Graph State State Machine

Filter State Machine

Streaming Service State Machine (within Filter Graph)

Client/Server Connections

Connection Overview

Subgraph

Filter Graph Ports

Property

Streaming Graph

Data Pipe

Sample

Sample Buffer

Sample Info

Referenced Sample

Stream Type

Stream Meta Type

Custom Stream Meta Types

AcceptType and IsCompatible

operator== and is_compatible

Default Stream Meta Types

Stream Meta Type "adtf/anonymous"

Stream Meta Type "adtf/plaintype"

Stream Meta Type "adtf/default"

Stream Meta Type "adtf/image"

Stream Meta Type "adtf/audio"

Stream Meta Type "adtf/string"

Stream Meta Type "adtf/substreams"

Substreams

Definition

Request Handling

Output Pin and Sample Writer/Pin Writer

Creating and writing samples

Input Pin and Sample Reader/Pin Reader

Reading samples

Reading stream types

Reading samples by data trigger

Trigger Pipe

Runner Input Pin and Trigger

Sample Stream Operation Modes

PushRead Mode - Synchronous Data Pipes

Sample Stream - write()

Sample Stream - flush()

Sample Stream - trigger()

Asynchronous Mode - Asynchronous Data Pipes

Push Mode - Queue Free Data Pipes

Inner Trigger Pipe of a Filter

Example 1: Simple Inner Pipe

Example 2: No Inner Pipe to the Outputs

Example 3: Inner Pipe and second Hidden Trigger Pipe

Example 4: Inner Pipe with Data Trigger

Example 5: Inner Pipe with only 1 Data Trigger catched

Example 6: Inner Pipe using ProcessInput()

Example 7: Inner Pipe using ProcessInput and 2 Data Triggers

Example 8: Inner Pipe with 1 Runner and 2 Data Triggers

ManualTrigger call

Overview of Writing and Reading Data

Arithmetic data

Array of arithmetic data

Structured data

Array of structured data

Video Image data

String data

Dynamic arrays within structured data

Custom data
